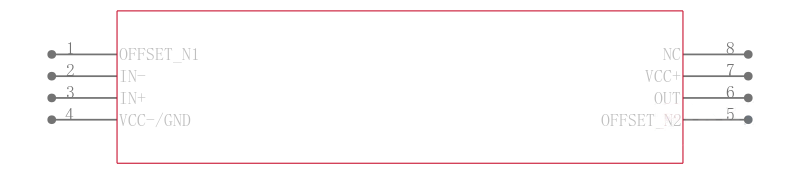

TLE2021CDG4

神剑高速低功耗精密运算放大器 EXCALIBUR HIGH-SPEED LOW-POWER PRECISION OPERATIONAL AMPLIFIERS

description

The TLE202x, TLE202xA, and TLE202xB devices are precision, high-speed, low-power operational amplifiers using a new Texas Instruments Excalibur process. These devices combine the best features of the OP21 with highly improved slew rate and unity-gain bandwidth. The complementary bipolar Excalibur process utilizes isolated vertical pnp transistors that yield dramatic improvement in unity-gain bandwidth and slew rate over similar devices.

Supply Current . . . 300 µA Max

High Unity-Gain Bandwidth . . . 2 MHz Typ

High Slew Rate . . . 0.45 V/µs Min

Supply-Current Change Over Military Temp Range . . . 10 µA Typ at VCC ± = ± 15 V

Specified for Both 5-V Single-Supply and ±15-V Operation

Phase-Reversal Protection

High Open-Loop Gain . . . 6.5 V/µV 136 dB Typ

Low Offset Voltage . . . 100 µV Max

Offset Voltage Drift With Time 0.005 µV/mo Typ

Low Input Bias Current . . . 50 nA Max

Low Noise Voltage . . . 19 nV/√Hz Typ
