description

The TMS370C040A, TMS370C042A, TMS370C340A, TMS370C342A, TMS370C742A, and SE370C742A devices are members of the TMS370 family of single-chip 8-bit microcontrollers. Unless otherwise noted, the term TMS370Cx4x refers to these devices. TMS370 family provides cost-effective real-time system control through integration of advanced peripheral function modules and various on-chip memory configurations.

The TMS370Cx4x family is implemented using high-performance silicon-gate CMOS EPROM and EEPROM technology. The low-operating power, wide-operating temperature range, and noise immunity of CMOS technology coupled with the high performance and extensive on-chip peripheral functions make the TMS370Cx4x devices attractive in system designs for automotive electronics, industrial motor, computer peripheral control, telecommunications, and consumer applications.

• CMOS/EEPROM/EPROM Technologies on a Single Device

   - Mask-ROM Devices for High Volume Production

   - One-Time-Programmable OTP Devices for Low-Volume Production

   - Reprogrammable EPROM Devices for Prototyping Purposes

• Flexible Operating Features

   - Low-Power Modes: STANDBY and HALT

   - Commercial, Industrial, and Automotive Temperature Ranges

   - Clock Options:

   - Divide-by-1 2 MHz--5 MHz SYSCLK Phase-Locked Loop PLL

   - Divide-by-4 0.5 MHz--5 MHz SYSCLK

   - Voltage VCC 5 V  10%

• Internal System Memory Configurations

   - On-Chip Program Memory Versions

   - ROM: 4K Bytes or 8K Bytes

   - EPROM: 8K Bytes

   - Data EEPROM: 256 Bytes

   - Static RAM: 256 Bytes Usable as Registers

• Two 16-Bit General-Purpose Timers

   - Software Configurable as

   Two 16-Bit Event Counters, or

   Two 16-Bit Pulse Accumulators, or

   Three 16-Bit Input Capture Functions, or

   Four Compare Registers, or

   Two Self-Contained

   Pulse-Width-Modulation PWM

   Functions

• Serial Communications Interface 1 SCI1

   - Asynchronous and Isosynchronous† Modes

   - Full Duplex, Double Buffered RX and TX

   - Two Multiprocessor Communications Formats

• CMOS/Package/TTL Compatible I/O Pins

   - All Peripheral Function Pins Software Configurable for Digital I/O

   - 40-Pin Plastic and Ceramic Dual-In-Line Packages/27 Bidirectional, 5 Input Pins

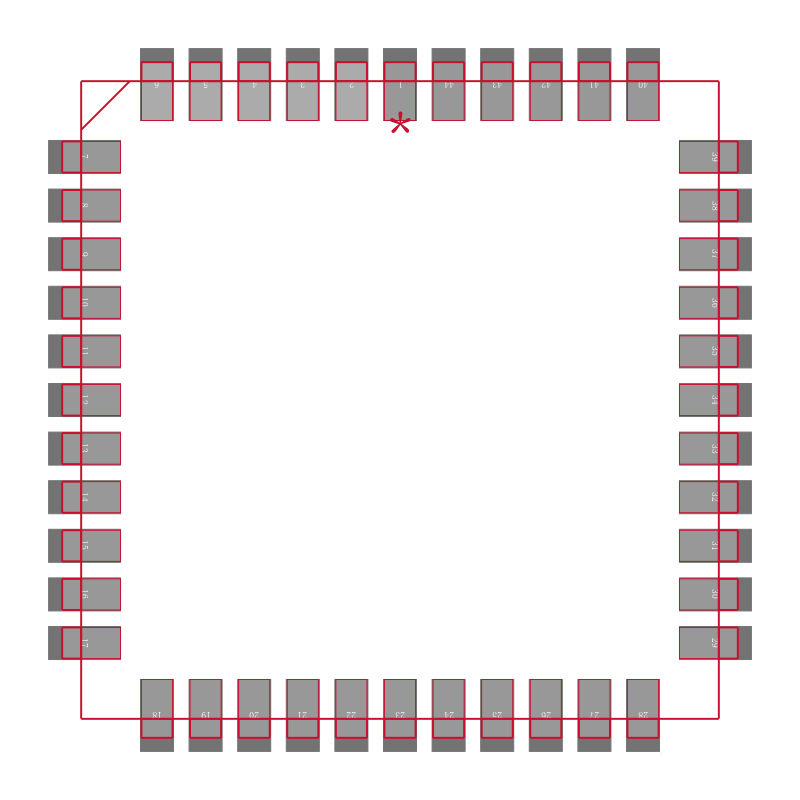

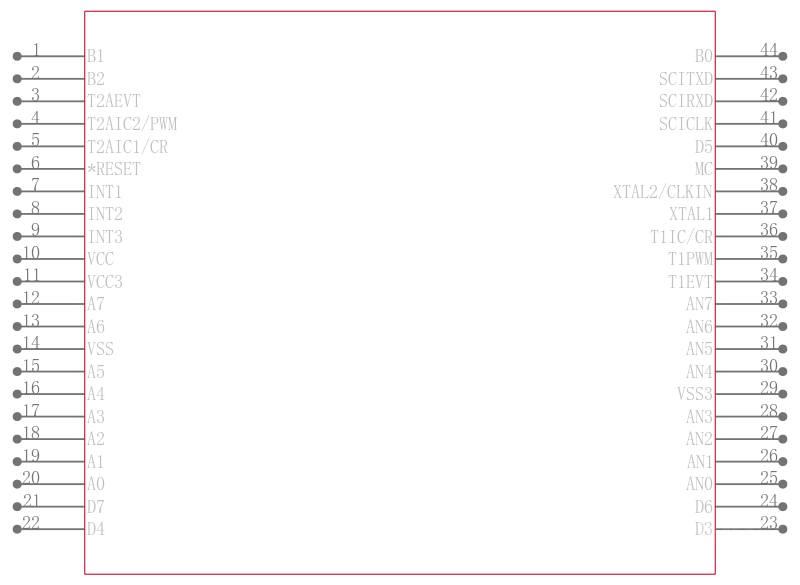

   - 44-Pin Plastic and Ceramic Leaded Chip Carrier Packages/27 Bidirectional, 9 Input Pins

• On-Chip 24-Bit Watchdog Timer

• Eight-Bit ADC1

   - Four Channels in 40-Pin Packages

   - Eight Channels in 44-Pin Packages

• Flexible Interrupt Handling

• TMS370 Series Compatibility

• Workstation/PC-Based Development System

   - C Compiler Support

   - Real-Time In-Circuit Emulation

   - C Source Debug

   - Extensive Breakpoint/Trace Capability

   - Software Performance Analysis

   - Multi-Window User Interface

   - EEPROM/EPROM Programming
