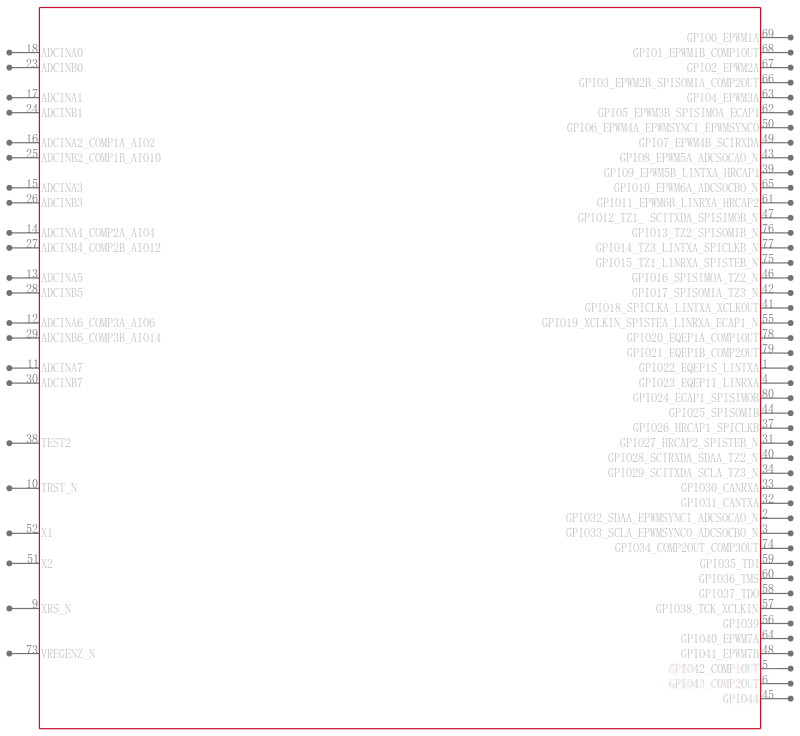

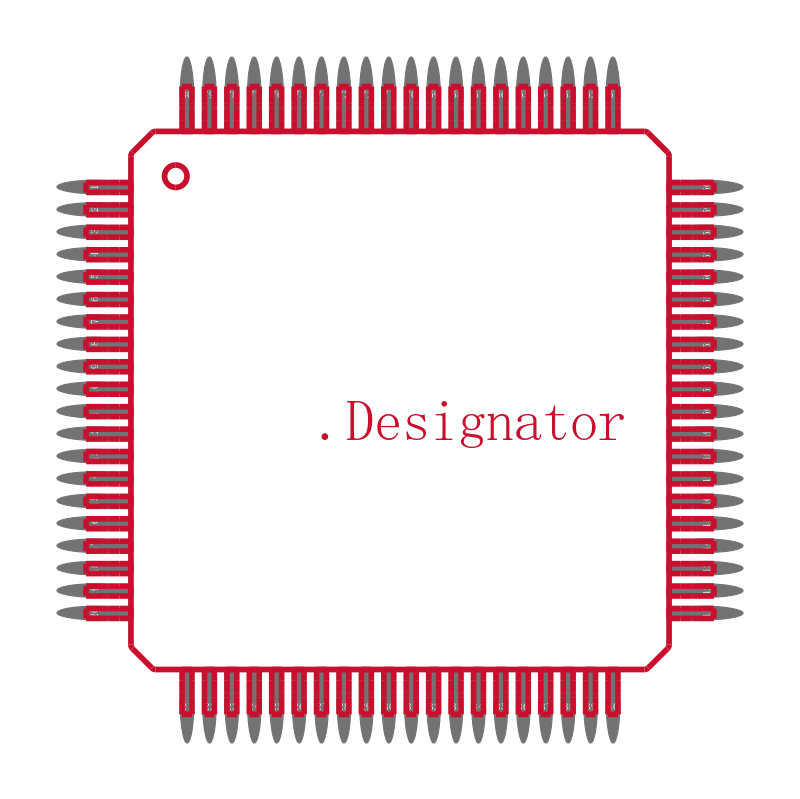

TMS320F28035PNS

TEXAS INSTRUMENTS  TMS320F28035PNS  微控制器, 32位, Piccolo, C2000, 60 MHz, 128 KB, 20 KB, 80 引脚, LQFP

The is a 32-bit Piccolo Microcontroller provides the power of the C28x core and control law accelerator CLA coupled with highly integrated control peripherals in low pin-count devices. This family is code-compatible with previous C28x-based code, as well as providing a high level of analog integration. An internal voltage regulator allows for single-rail operation. Enhancements have been made to the HRPWM module to allow for dual-edge control frequency modulation. Analog comparators with internal 10-bit references have been added and can be routed directly to control the PWM outputs. The ADC converts from 0 to 3.3V fixed full-scale range and supports ratio-metric VREFHI/VREFLO references. The ADC interface has been optimized for low overhead and latency.

.

High-efficiency 32-bit CPU TMS320C28x™

.

16 x 16 and 32 x 32 MAC operations

.

16 x 16 Dual MAC

.

Harvard bus architecture

.

Atomic operations

.

Fast interrupt response and processing

.

Unified memory programming model

.

Code-efficient in C/C++ and assembly

.

Endianness - little endian

.

JTAG boundary scan support

.

No power sequencing requirement

.

Integrated power-on and brown-out resets

.

Two internal zero-pin oscillators

.

On-chip crystal Oscillator/External clock input

.

Dynamic PLL ratio changes supported

.

Watchdog timer module

.

Missing clock detection circuitry

.

Peripheral interrupt expansion PIE block that supports all peripheral interrupts

.

Three 32-bit CPU timers

.

Independent 16-bit timer in each ePWM module
