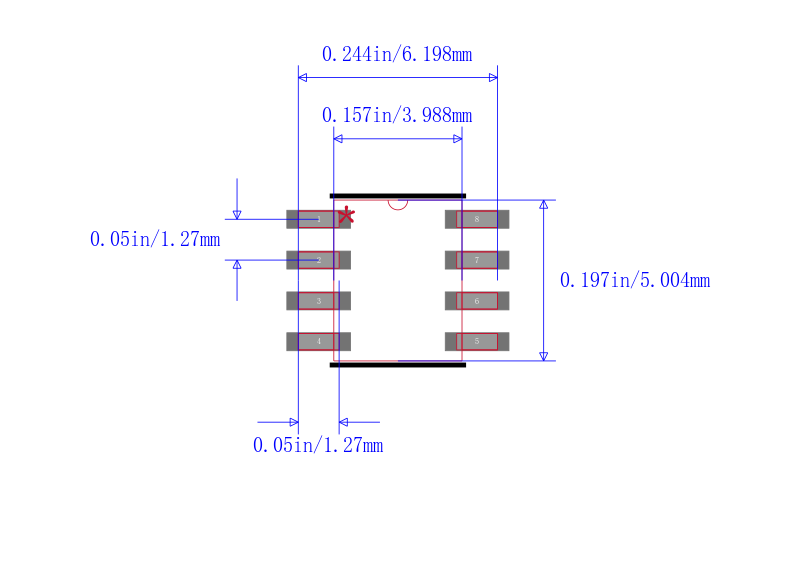

TLC2654I-8D

高级LinCMOSE低噪声斩波稳零运算放大器 Advanced LinCMOSE LOW-NOISE CHOPPER-STABILIZED OPERATIONAL AMPLIFIERS

description

The TLC2654 and TLC2654A are low-noise chopper-stabilized operational amplifiers using

the Advanced LinCMOSprocess. Combining this process with chopper-stabilization circuitry

makes excellent dc precision possible. In addition, circuit techniques are added that give the

TLC2654 and TLC2654A superior noise perfor mance.

Input Noise Voltage

  0.5 µV Peak-to-Peak Typ, f = 0 to 1 Hz

  1.5 µV Peak-to-Peak Typ, f = 0 to 10 Hz

  47 nV/√HzTyp, f = 10 Hz

  13 nV/√HzTyp, f = 1 kHz

High Chopping Frequency. . . 10 kHz Typ

No Clock Noise Below 10 kHz

No Intermodulation Error Below 5 kHz

Low Input Offset Voltage

  10 µV Max TLC2654A

Excellent Offset Voltage Stability With Temperature. . . 0.05 µV/°C Max

AVD. . . 135 dB Min TLC2654A

CMRR...110 dB Min TLC2654A

kSVR...110 dB Min

Single-Supply Operation

Common-Mode Input Voltage Range Includes the Negative Rail

No Noise Degradation With External Capacitors Connected to VDD–

Available in Q-Temp Automotive

   HighRel Automotive Applications

  Configuration Control/Print Support

  Qualification to Automotive Standards
