TPS73028DBVT

TPS73028DBVT

TI(德州仪器) 主动器件

TEXAS INSTRUMENTS  TPS73028DBVT  固定电压稳压器, LDO, 2.7V至5.5V, 120mV压差, 2.8V输出, 200mA输出, SOT-23-5

PMIC - 稳压器 - 线性 正 固定 1 输出 200mA SOT-23-5


得捷:
IC REG LINEAR 2.8V 200MA SOT23-5


立创商城:
TPS73028DBVT


德州仪器TI:
200-mA, low-dropout voltage regulator with enable


贸泽:
LDO Voltage Regulators High PSRR RF 200-mA


e络盟:
TEXAS INSTRUMENTS  TPS73028DBVT  固定电压稳压器, LDO, 2.7V至5.5V, 120mV压差, 2.8V输出, 200mA输出, SOT-23-5


艾睿:
Maintain a steady voltage level with this LDO TPS73028DBVT linear regulator from Texas Instruments. It has an overall accuracy of ±2 %. This device has a maximum power dissipation of 560 mW. Its typical dropout voltage at current is 0.12@200mA V. This voltage regulation device&s;s single output can produce a current up to 0.2 A. By only needing an input voltage of 2.7 V with a maximum of 5.5 V, this is the best way to control the power in your circuit. With a fixed output that has a voltage of 2.8 V, this is power management at its best. Maintain a constant voltage level with a load regulation of 5mVTyp and line regulation of 0.05%/VTyp. Its maximum power dissipation is 560 mW. This product will be shipped in tape and reel packaging so that components can be mounted effectively. Its polarity is positive. The maximum dropout voltage is 0.21@200mA V. This voltage regulation device has an operating temperature range of -40 °C to 125 °C.


安富利:
LDO Regulator Pos 2.8V 0.2A 5-Pin SOT-23 T/R


Chip1Stop:
Single Channel LDO Single Output LDO, 200mA, Fixed2.8V, High PSRR, Low Noise LDO Regulator Pos 2.8V 0.2A 5-Pin SOT-23 T/R


Verical:
LDO Regulator Pos 2.8V 0.2A 5-Pin SOT-23 T/R


Newark:
# TEXAS INSTRUMENTS  TPS73028DBVT  Fixed LDO Voltage Regulator, 2.7V to 5.5V, 120mV Dropout, 2.8Vout, 200mAout, SOT-23-5


DeviceMart:
IC REG LDO 2.8V .2A SOT23-5


Win Source:
Linear Voltage Regulator IC Positive Fixed 1 Output 2.8V 200mA SOT-23-5


TPS73028DBVT中文资料参数规格
技术参数

输出接口数 1

输入电压DC 5.50V max

输出电压 2.8 V

输出电流 200 mA

供电电流 250 µA

针脚数 5

耗散功率 0.56 W

静态电流 170 µA

输出电容类型 Ceramic

跌落电压 120 mV

调节输出数 1

输入电压Max 5.5 V

输入电压Min 2.7 V

输出电压Min 2.8 V

输出电流Max 0.2 A

工作温度Max 85 ℃

工作温度Min -40 ℃

耗散功率Max 560 mW

精度 2 %

输入电压 ≤5.5 V

封装参数

安装方式 Surface Mount

引脚数 5

封装 SOT-23-5

外形尺寸

长度 2.9 mm

宽度 1.6 mm

高度 1.15 mm

封装 SOT-23-5

物理参数

工作温度 -40℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/06/15

海关信息

ECCN代码 EAR99

TPS73028DBVT引脚图与封装图

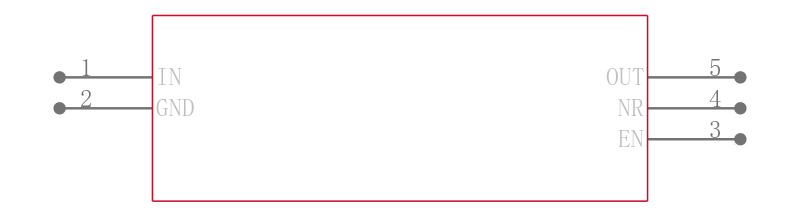

TPS73028DBVT引脚图

TPS73028DBVT引脚图

TPS73028DBVT封装图

TPS73028DBVT封装图

TPS73028DBVT封装焊盘图

TPS73028DBVT封装焊盘图

在线购买TPS73028DBVT
型号 制造商 描述 购买
TPS73028DBVT TI 德州仪器 TEXAS INSTRUMENTS  TPS73028DBVT  固定电压稳压器, LDO, 2.7V至5.5V, 120mV压差, 2.8V输出, 200mA输出, SOT-23-5 搜索库存
替代型号TPS73028DBVT
图片 型号/品牌/封装 代替类型 描述 替代型号对比

型号: TPS73028DBVT

品牌: TI 德州仪器

封装: SOT-23 200mA 5Pin

当前型号

TEXAS INSTRUMENTS  TPS73028DBVT  固定电压稳压器, LDO, 2.7V至5.5V, 120mV压差, 2.8V输出, 200mA输出, SOT-23-5

当前型号

型号: TPS73028DBVR

品牌: 德州仪器

封装: SC-74A 200mA 5Pin

类似代替

低噪声,高PSRR ,射频200mA的低压差线性稳压器 LOW-NOISE, HIGH PSRR, RF 200-mA LOW-DROPOUT LINEAR REGULATORS

TPS73028DBVT和TPS73028DBVR的区别

型号: TPS73028DBVTG4

品牌: 德州仪器

封装: SOT-23 2.8V 200mA 5Pin

类似代替

低噪声,高PSRR ,射频200mA的低压差线性稳压器 LOW-NOISE, HIGH PSRR, RF 200-mA LOW-DROPOUT LINEAR REGULATORS

TPS73028DBVT和TPS73028DBVTG4的区别

型号: TPS73028DBVRG4

品牌: 德州仪器

封装: SOT-23-5 200mA 5Pin

类似代替

低噪声,高PSRR ,射频200mA的低压差线性稳压器 LOW-NOISE, HIGH PSRR, RF 200-mA LOW-DROPOUT LINEAR REGULATORS

TPS73028DBVT和TPS73028DBVRG4的区别
