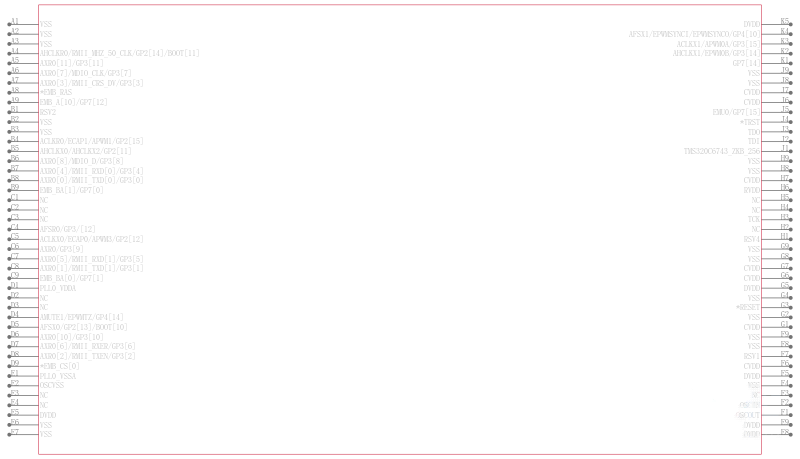

TMS320C6743DZKBT3

低功耗 C674x 浮点 DSP- 375MHz 256-BGA -40 to 125

The C6743 device is a low-power digital signal processor based on C674x DSP core. The device consumes significantly lower power than other members of the TMS320C6000™ platform of DSPs.

The C6743 device enables original-equipment manufacturers OEMs and original-design manufacturers ODMs to quickly bring to market devices featuring high processing performance.

The C6743 DSP core uses a two-level cache-based architecture. The Level 1 program cache L1P is a 32-KB direct mapped cache and the Level 1 data cache L1D is a 32-KB 2-way set-associative cache. The Level 2 program cache L2P consists of a 128-KB of memory space that is shared between program and data space. L2 memory can be configured as mapped memory, cache, or combinations of the two.

The peripheral set includes: a 10/100 Mbps Ethernet MAC EMAC with a management data input/output MDIO module; two I2C Bus interfaces; two multichannel audio serial ports McASPs with 14/9 serializers and FIFO buffers; two 64-bit general-purpose timers each configurable one configurable as watchdog; up to 8 banks of 16 pins of general-purpose input/output GPIO with programmable interrupt/event generation modes, multiplexed with other peripherals; two UART interfaces one with both RTS and CTS; three enhanced high-resolution pulse width modulator eHRPWM peripherals; three 32-bit enhanced capture eCAP module peripherals which can be configured as 3 capture inputs or 3 auxiliary pulse width modulator APWM outputs; two 32-bit enhanced quadrature encoded pulse eQEP peripherals; and 2 external memory interfaces EMIFs: an asynchronous external memory interface EMIFA for slower memories or peripherals, and a higher speed memory interface EMIFB for SDRAM.

The Ethernet Media Access Controller EMAC provides an efficient interface between the C6743 and the network. The EMAC supports both 10Base-T and 100Base-TX, or 10 Mbps and 100 Mbps in either half- or full-duplex mode. Additionally, an MDIO interface is available for PHY configuration.

The rich peripheral set provides the ability to control external peripheral devices and communicate with external processors. For details on each of the peripherals, see the related sections later in this document and the associated peripheral reference guides.
