SN74HC4020PW
TI(德州仪器)
主动器件

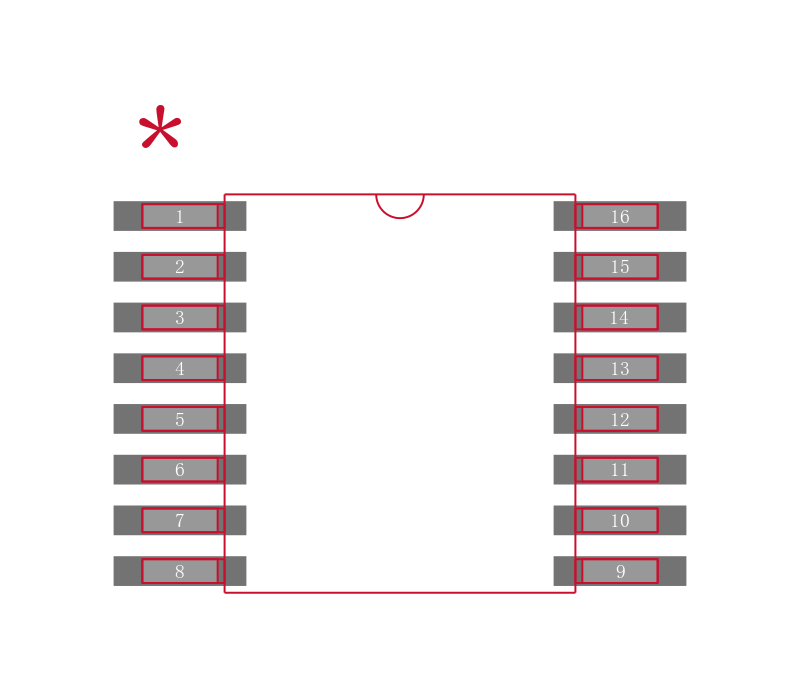

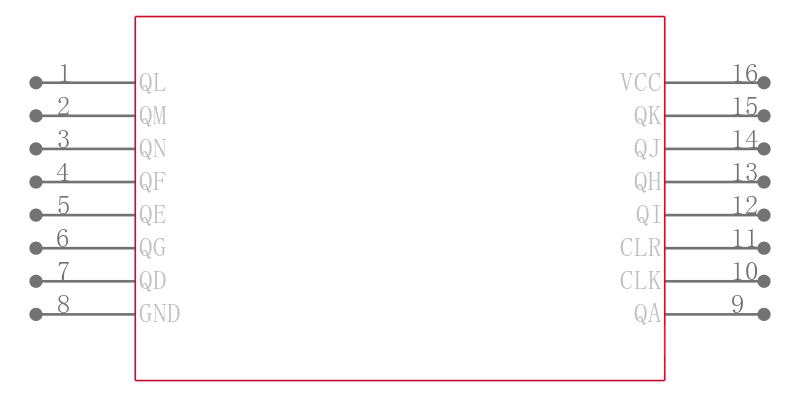

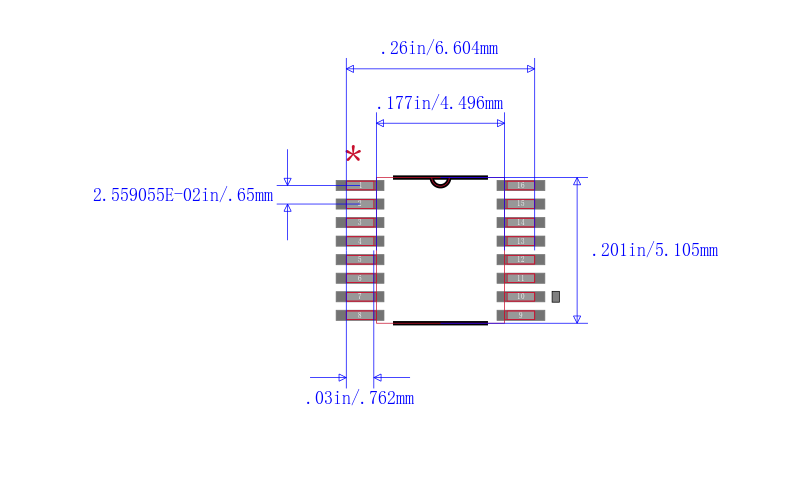

TEXAS INSTRUMENTS SN74HC4020PW 逻辑芯片, 异步二进制计数器, 16TSSOP
description/ordering information
The ’HC4020 devices are 14-stage binary ripple-carry counters that advance on the negative-going edge of the clock pulse. The counters are reset to zero all outputs low independently of the clock CLK input when the clear CLR input goes high.
● Wide Operating Voltage Range of 2 V to 6 V
● Outputs Can Drive Up To 10 LSTTL Loads
● Low Power Consumption, 80-µA Max ICC
● Typical tpd = 12 ns
● ±4-mA Output Drive at 5 V
● Low Input Current of 1 µA Max
