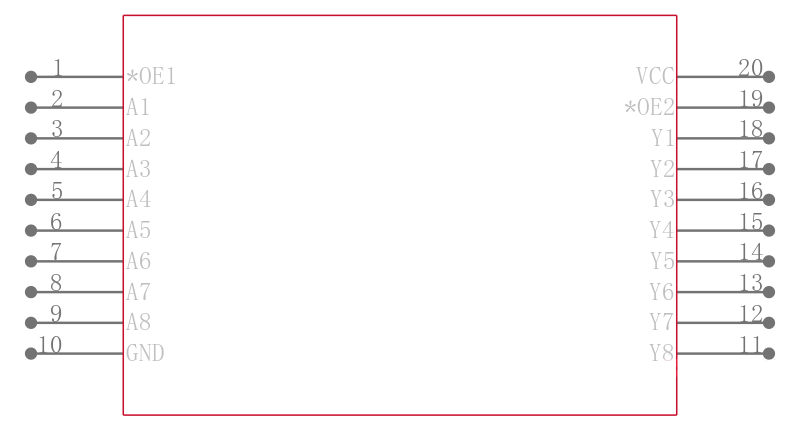

SN74ABT541BNSR

八路缓冲器/驱动器，具有三态输出 OCTAL BUFFERS/DRIVERS WITH 3-STATE OUTPUTS

DESCRIPON/ORDERING INFORMATION

The SN54ABT541 and SN74ABT541B octal buffers and line drivers are ideal for driving bus lines or buffering memory address registers. The devices feature inputs and outputs on opposite sides of the package to facilitate printed circuit board layout.

FEATURES

• State-of-the-Art EPIC-IIB™ BiCMOS Design

  Significantly Reduces Power Dissipation

• Latch-Up Performance Exceeds 500 mA Per JEDEC Standard JESD-17

• Typical VOLP Output Ground Bounce < 1 V at VCC = 5 V, TA = 25°C

• High-Impedance State During Power Up and Power Down

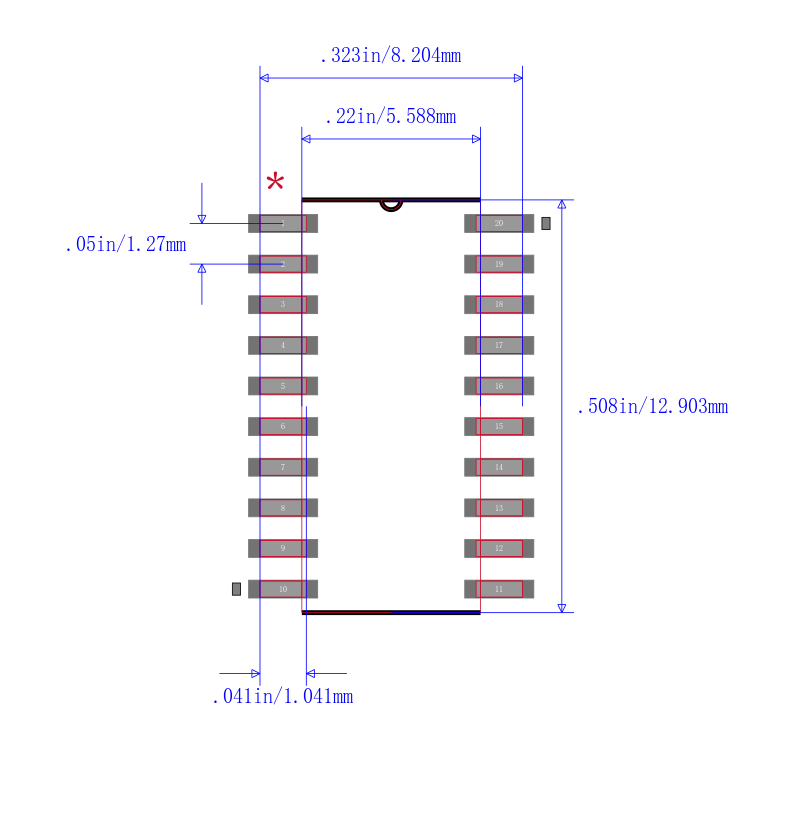

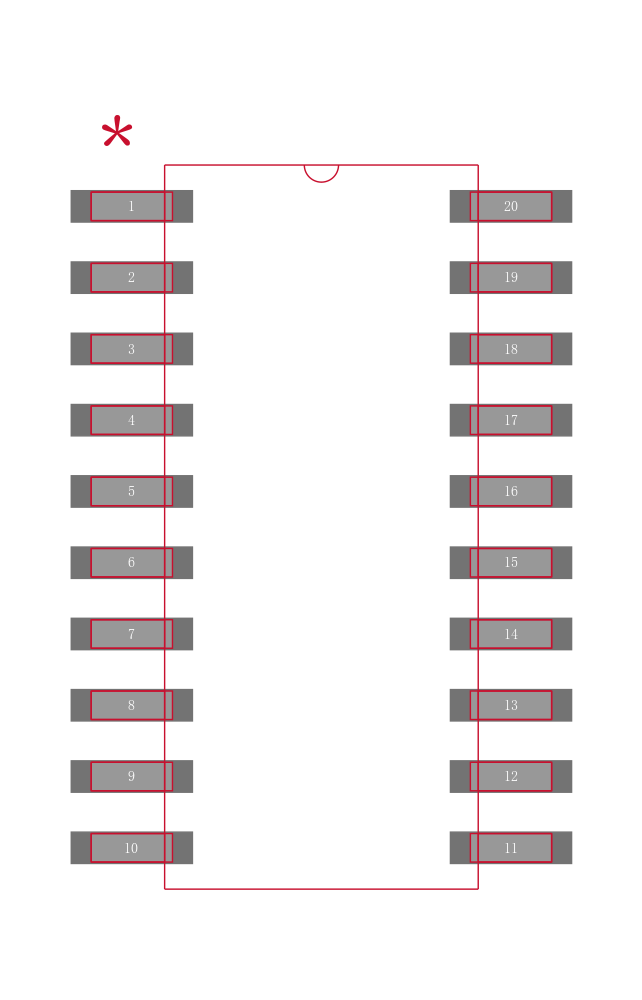

• High-Drive Outputs –32-mA IOH, 64-mA IOL • Package Options Include Plastic Small-Outline DW, Shrink Small-Outline DB, and Thin Shrink Small-Outline PW Packages, Ceramic Chip Carriers FK, Ceramic Flat W Package, and Plastic N and Ceramic J DIPs
