SN74LVC1G34DCKR
TI(德州仪器)
电子元器件分类

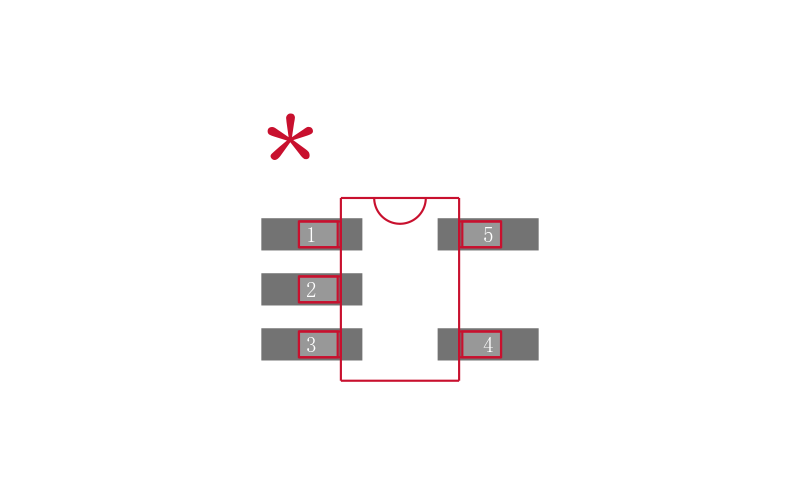

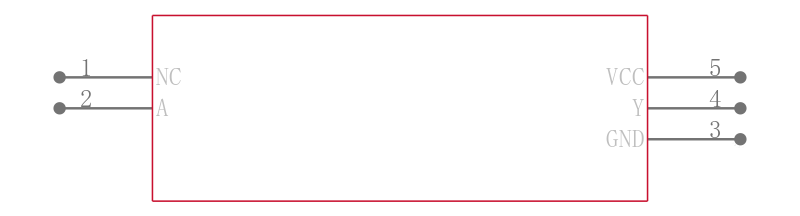

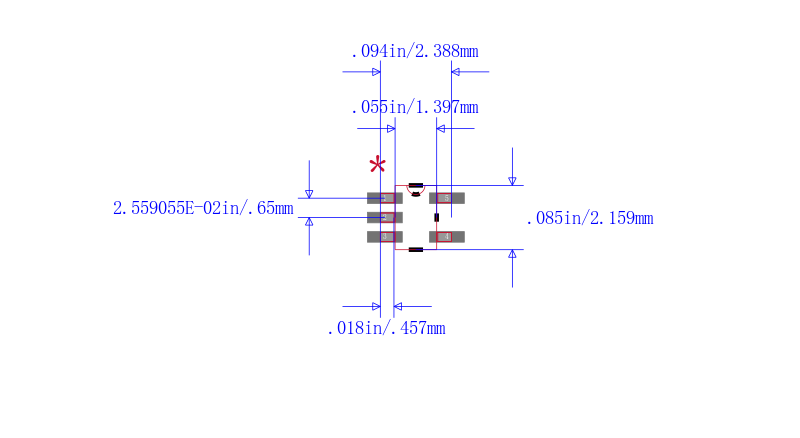

IC 缓存与线路驱动器 SN74LVC1G34DCKR SOT-353/SC-88A/SC70-5/TSSOP5 marking/标记 C9R
The is a single Buffer Gate designed for 1.65 to 5.5V VCC operation. This device performs the Boolean function Y = A in positive logic. The CMOS device has high output drive while maintaining low static power dissipation over a broad VCC operating range. This device is fully specified for partial-power-down applications using IOFF. The IOFF circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.
- .
- Allows down voltage translation
- .
- Provides down translation to VCC
- .
- IOFF Supports live insertion, partial-power-down mode and back drive protection
- .
- Latch-up performance exceeds 100mA per JESD 78, class II
- .
- 3.5ns at 3.3V Propagation delay tpd
- .
- 1µA ICC Low power consumption
- .
- ±24mA Output drive at 3.3V
- .
- Green product and no Sb/Br
