SN74ALVC00IPWRG4Q1
TI(德州仪器)
主动器件

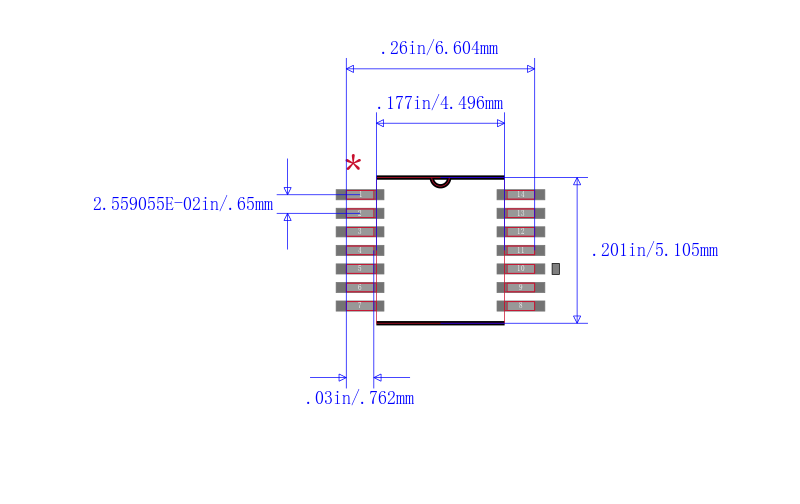

汽车类四路 2 输入正与非门 14-TSSOP -40 to 85
description/ordering informatiom
The SN74ALVC00 quadruple 2-input positive-NAND gate is designed for 1.65-V to 3.6-V VCC operation.
The device performs the Boolean function Y = A •Bor Y = A+ Bin positive logic.
Qualified for Automotive Applications
ESD Protection Exceeds 2000 V Per
MIL-STD-883, Method 3015; Exceeds 200 V
Using Machine Model C = 200 pF, R = 0
Operates From 1.65 V to 3.6 V
Max tpdof 3 ns at 3.3 V
±24-mA Output Drive at 3.3 V
Latch-Up Performance Exceeds 250 mA Per JESD 17
