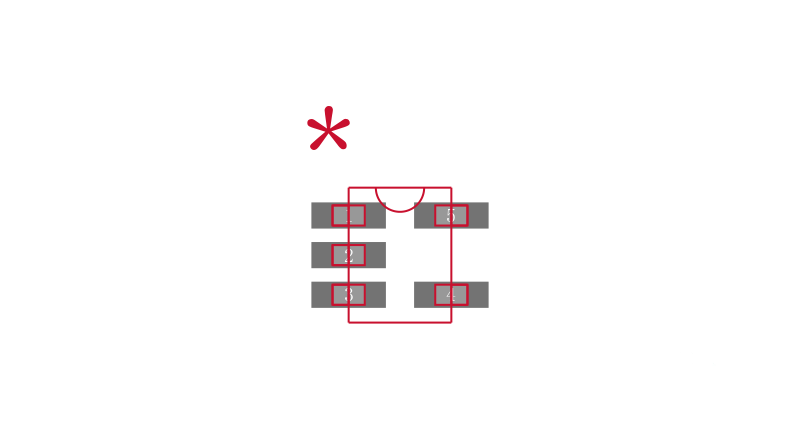

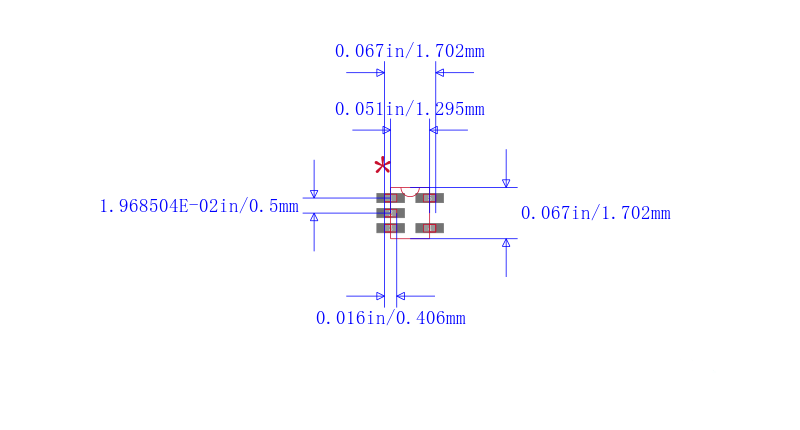

SN74AUP1G14DRLR

低功率单施密特触发器逆变器 LOW-POWER SINGLE SCHMITT-TRIGGER INVERTER

DESCRIPON/ORDERING INFORMATION

The AUP family is TI"s premier solution to the industry"s low power needs in battery-powered portable

applications. This family ensures a very low static and dynamic power consumption across the entire VCC

range of 0.8 V to 3.6 V, resulting in an increased battery life. This product also maintains excellent signal integrity see Figure 1 and Figure 2.

FEATURES

• Available in the Texas Instruments NanoStar™ Package

• Low Static-Power Consumption ICC = 0.9 mA Max

• Low Dynamic-Power Consumption Cpd = 4.4 pF Typ at 3.3 V

• Low Input Capacitance CI = 1.5 pF Typ

• Low Noise – Overshoot and Undershoot <10% of VCC

• Ioff Supports Partial-Power-Down Mode Operation

• Includes Schmitt-Trigger Inputs

• Wide Operating VCC Range of 0.8 V to 3.6 V

• Optimized for 3.3-V Operation

• 3.6-V I/O Tolerant to Support Mixed-Mode Signal Operation

• tpd = 4.9 ns Max at 3.3 V

• Suitable for Point-to-Point Applications

• Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II

• ESD Performance Tested Per JESD 22

– 2000-V Human-Body ModelA114-B, Class II

– 1000-V Charged-Device Model C101
