SN74ALVC00DR
TI(德州仪器)
主动器件

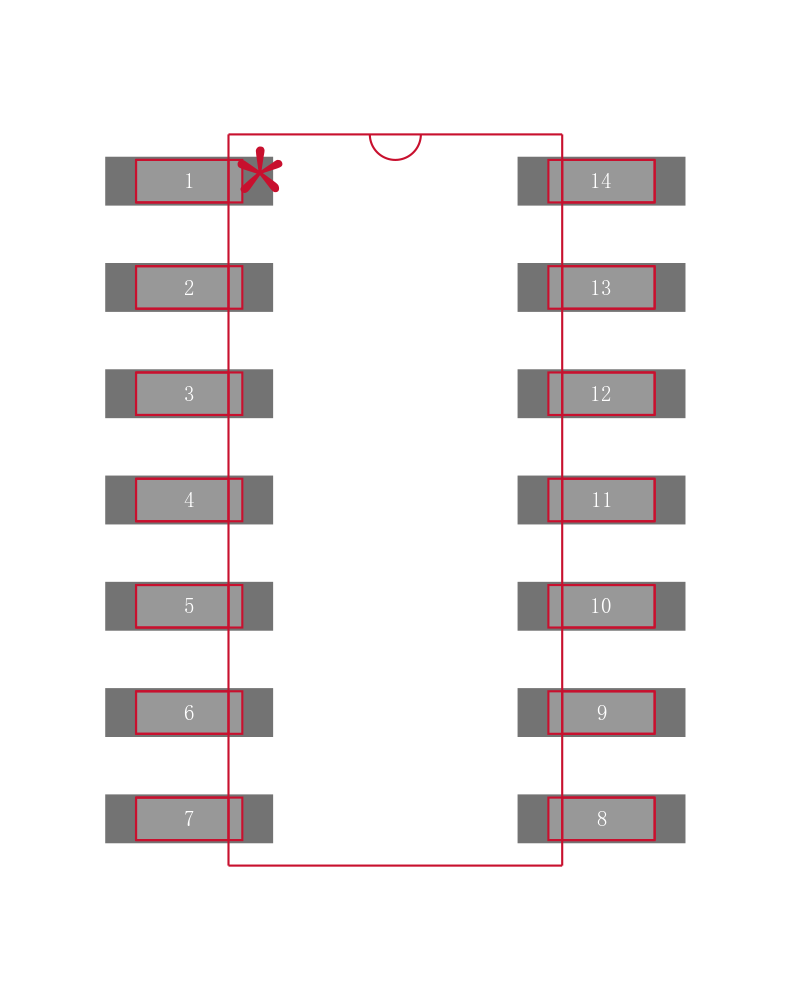

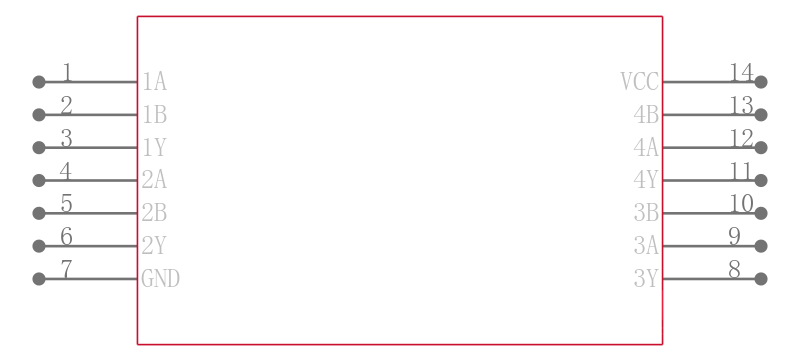

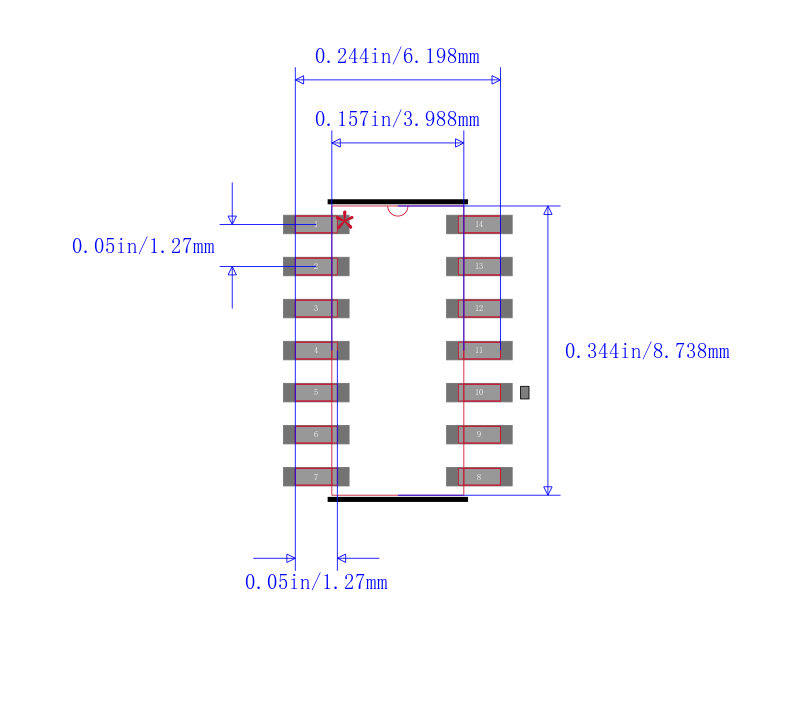

四路2输入正与非门 QUADRUPLE 2-INPUT POSITIVE-NAND GATE
DESCRIPON/ORDERING INFORMATION
This quadruple 2-input positive-NAND gate is designed for 1.65-V to 3.6-V VCC operation.
The SN74ALVC00 performs the Boolean function Y = A · B or Y = A + B in positive logic.
FEATURES
• Operates From 1.65 V to 3.6 V
• Max tpd of 3 ns at 3.3 V
• ±24-mA Output Drive at 3.3 V
• Latch-Up Performance Exceeds 250 mA Per JESD 17
• ESD Protection Exceeds JESD 22
– 2000-V Human-Body Model A114-A
– 200-V Machine Model A115-A
– 1000-V Charged-Device Model C101
