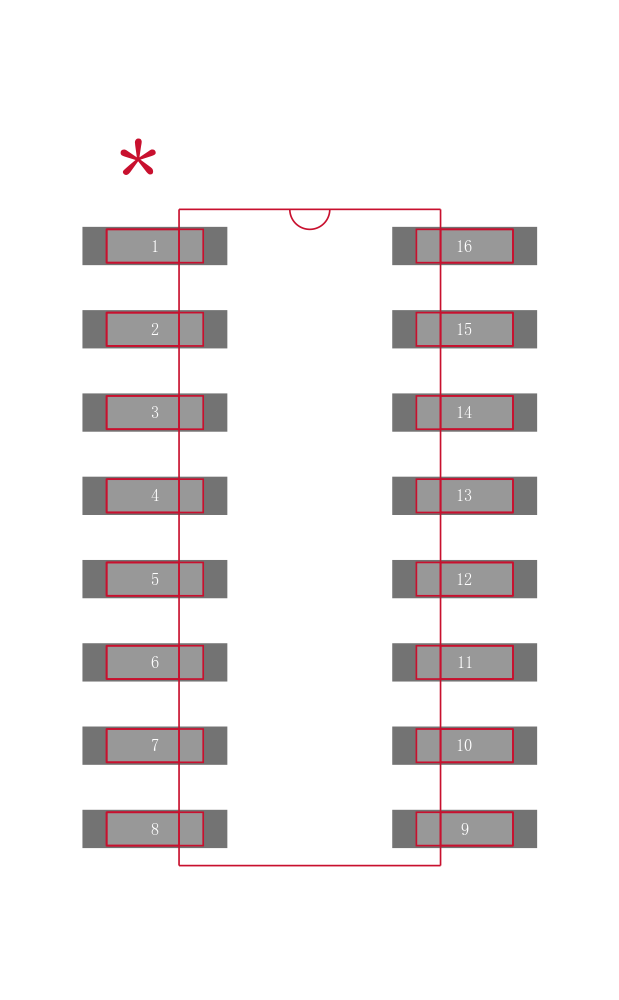

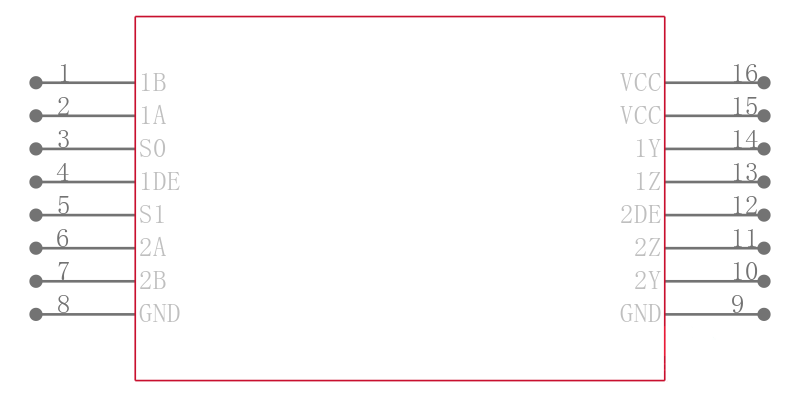

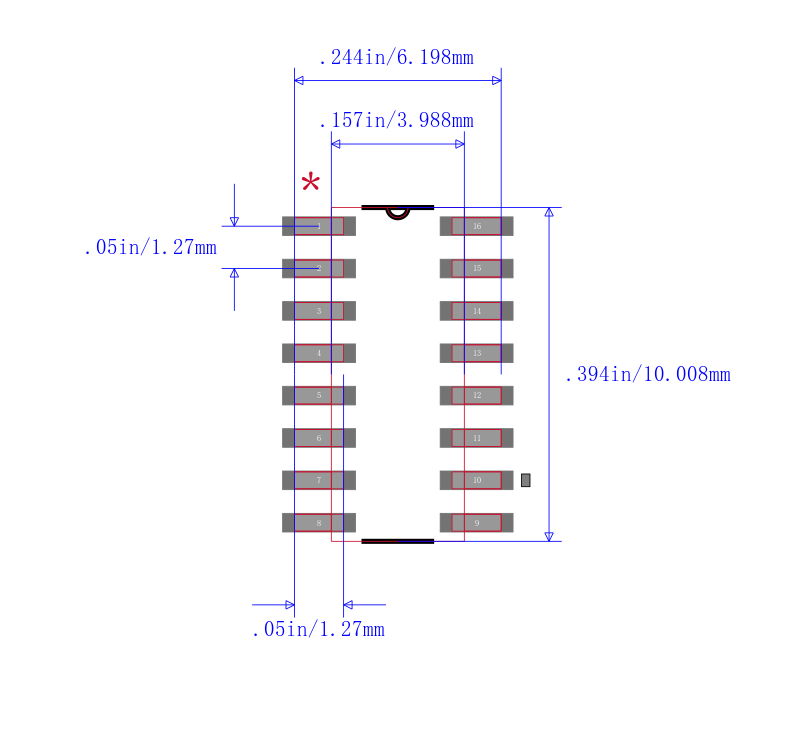

SN65LVDM22D

双复用LVDS转发 DUAL MULTIPLEXED LVDS REPEATERS

The SN65LVDS22 and SN65LVDM22 are differential line drivers and receivers that use low-voltage differential signaling LVDS to achieve signaling rates as high as 400 Mbps. The receiver outputs can be switched to either or both drivers through the multiplexer control signals S0 and S1. This allows the flexibility to perform splitter or signal routing functions with a single device.

The A/EIA-644 standard compliant electrical interface provides a minimum differential output voltage magnitude of 247 mV into a 100- load.

The intended application of these devices and signaling technique is for both point-to-point baseband single termination and multipoint double termination data transmissions over controlled impedance media. The transmission media may be printed-circuit board traces, backplanes, or cables. Note: The ultimate rate and distance of data transfer is dependent upon the attenuation characteristics of the media, the noise coupling to the environment, and other application specific characteristics.

The SN65LVDS22 and SN65LVDM22 are characterized for operation from –40°C to 85°C.
