TEXAS INSTRUMENTS  SN74ALVC245PWR  收发器, 非反相, 1.65V至3.6V, TSSOP-20

The is an octal Bus Transceiver with 3-state outputs and designed for 1.65 to 3.6V VCC operation. The SN74ALVC245 is designed for asynchronous communication between data buses. The device transmits data from the A bus to the B bus or from the B bus to the A bus, depending on the logic level at the direction-control input. The output-enable OE\ input can be used to disable the device so the buses are effectively isolated. To ensure the high-impedance state during power up or power down, OE\ should be tied to VCC through a pull-up resistor and the minimum value of the resistor is determined by the current-sinking capability of the driver.

.
3.4ns at 3.3V Propagation delay tpd
.
±24mA Output drive at 3.3V
.
Latch-up performance exceeds 250mA per JESD 17
.
Green product and no Sb/Br
SN74ALVC245PWR中文资料参数规格
技术参数

电源电压DC 1.65V min

电路数 8

通道数 8

针脚数 20

位数 8

输出电流驱动 -1.00 mA

工作温度Max 85 ℃

工作温度Min -40 ℃

电源电压 1.65V ~ 3.6V

电源电压Max 3.6 V

电源电压Min 1.65 V

封装参数

安装方式 Surface Mount

引脚数 20

封装 TSSOP-20

外形尺寸

长度 6.5 mm

宽度 4.4 mm

高度 1.15 mm

封装 TSSOP-20

物理参数

工作温度 -40℃ ~ 85℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

制造应用 工业, 信号处理, 自动化与过程控制

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/06/15

海关信息

ECCN代码 EAR99

香港进出口证 NLR

SN74ALVC245PWR引脚图与封装图

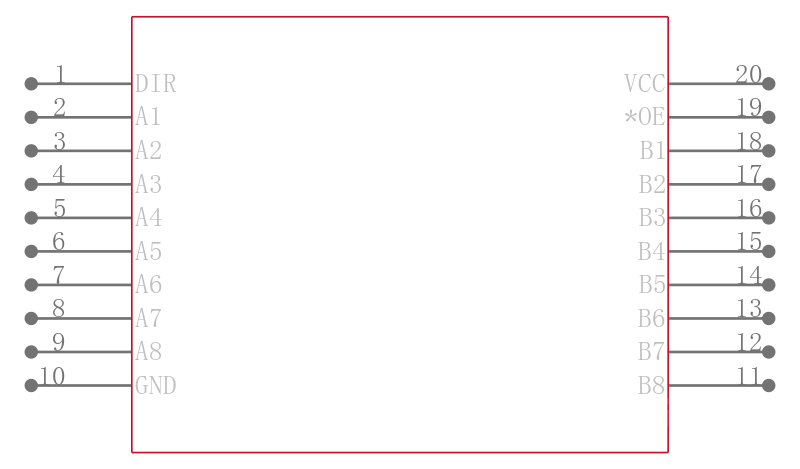

SN74ALVC245PWR引脚图

SN74ALVC245PWR引脚图

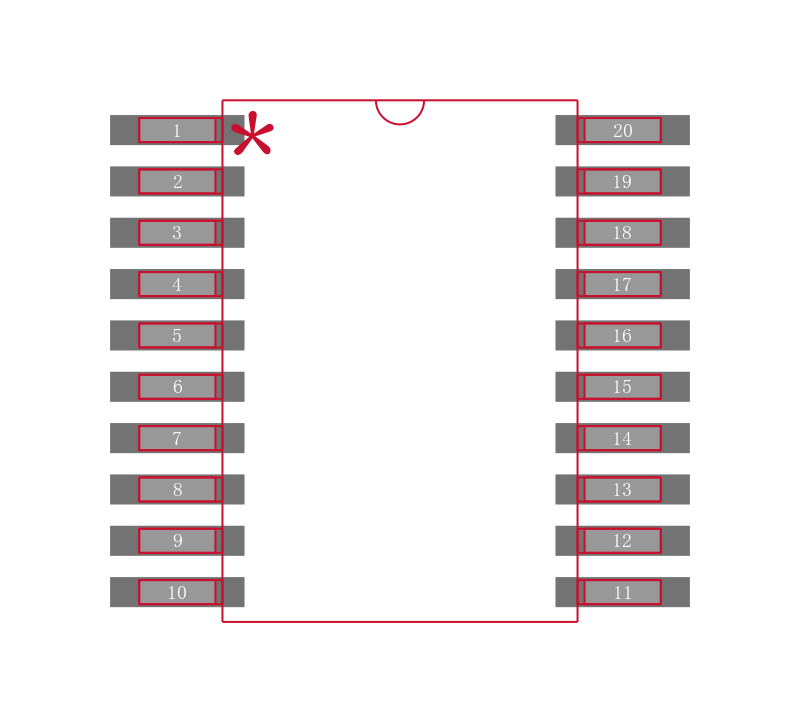

SN74ALVC245PWR封装图

SN74ALVC245PWR封装图

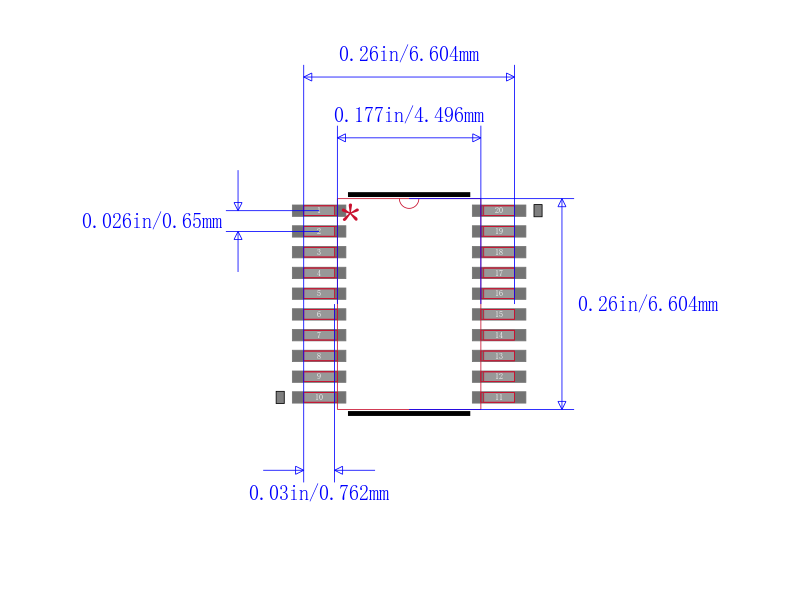

SN74ALVC245PWR封装焊盘图
