PT6705C

REGULATOR 3.3V 13A VADJ HRZ SMD

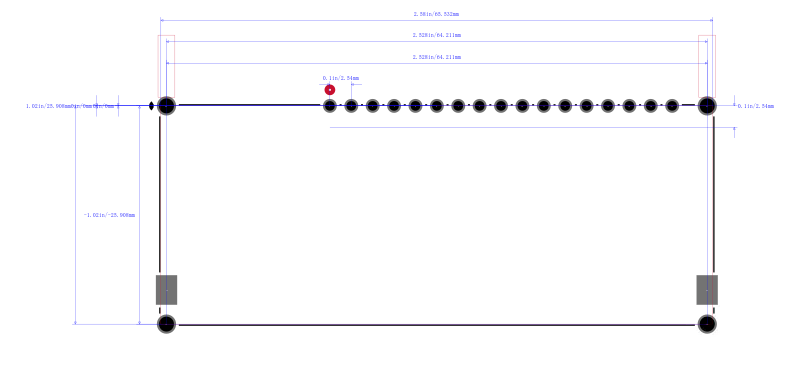

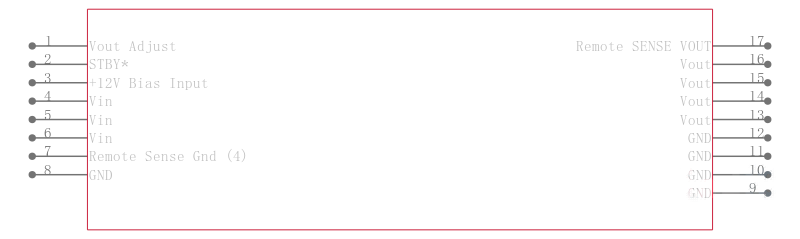

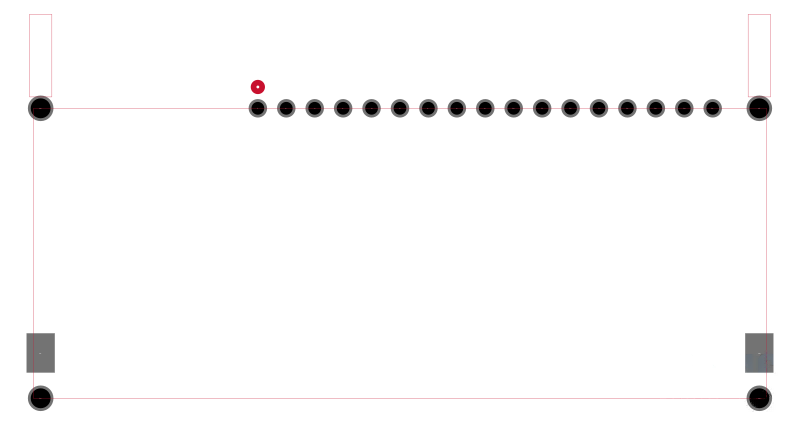

The PT6700 is a new series of high-performance, 13 Amp Integrated Switching Regulators ISRs housed in a unique, space-saving 23-pin SIP package. The 13A capability allows easy integration of the latest high speed, low-voltage µPs and bus drivers into existing 5V systems.

The output voltage of the PT6700 can be programmed easily from 1.3V to 3.5V with a 5-bit input compatible with Intel’s Pentium II Processor.

The PT6700 includes a differential remote sense which automatically compensates for any voltage drop from the ISR to the load. Also provided are internal short circuit protection, OVP drive and a power good output signal. When over-voltage is detected, the PT6700 provides drive for an external crowbar or other protection circuitry.

Features

• Space Saving SIP Package

• +5V input

• 5-bit Programmable: 1.3V to 3.5V@13A

• High Efficiency

• Input Voltage Range: 4.5V to 5.5V

• Differential Remote Sense

• Short Circuit Protection

• Over-Voltage Drive

• Power Good Signal
