PCS3P25811AG08SR

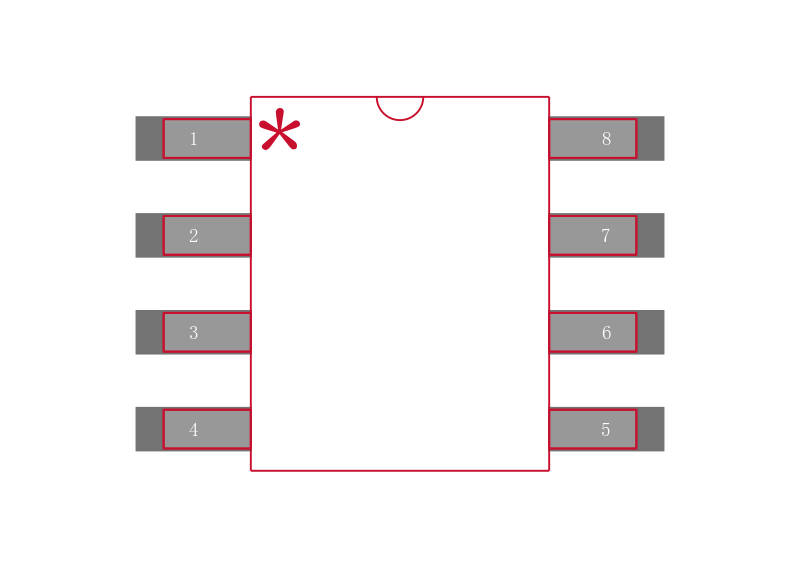

PCS3P25811 系列 3.6 V 32 MHz 展频 时钟发生器 - SOIC-8

The PCS3P25811/12/14 devices are versatile spread spectrum frequency modulators designed specifically for a wide range of input clock frequencies from 4MHz to 32MHz.The PCS3P25811/12/14 reduce electromagnetic interference EMI at the clock source, allowing system wide reduction of EMI of down stream clock and data dependent signals. It allows significant system cost savings by reducing the number of circuit board layers, ferrite beads, shielding, and other passive components that are traditionally required to pass EMI regulations. PCS3P25811/12/14 can generate an EMI reduced clock from crystal, ceramic resonator, or system clock. PCS3P25811/12/14 have 2 pins S0 and S1 to control the selection of Center Spread, Down Spread and No-Spread functions. Additionally there is a 3 level logic contol FSEL, for selecting one of the three different frequency ranges within the operating frequency range.

Features

---

 |

.

Generates a 1x PCS3P25811, 2x PCS3P25812 and 4xPCS3P25814 low EMI spread spectrum clock of the input frequency

.

Selectable spread options: Down Spread and Center Spread

.

Low inherent Cycle-to-Cycle Jitter
