OPA2652UG4

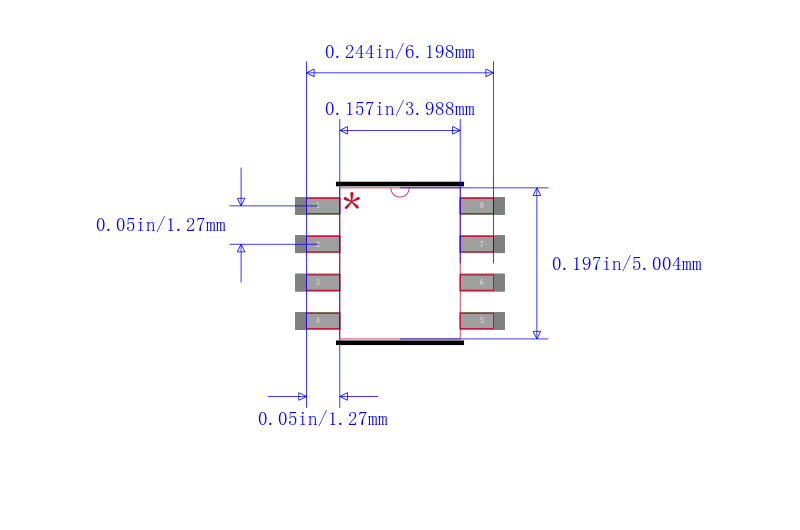

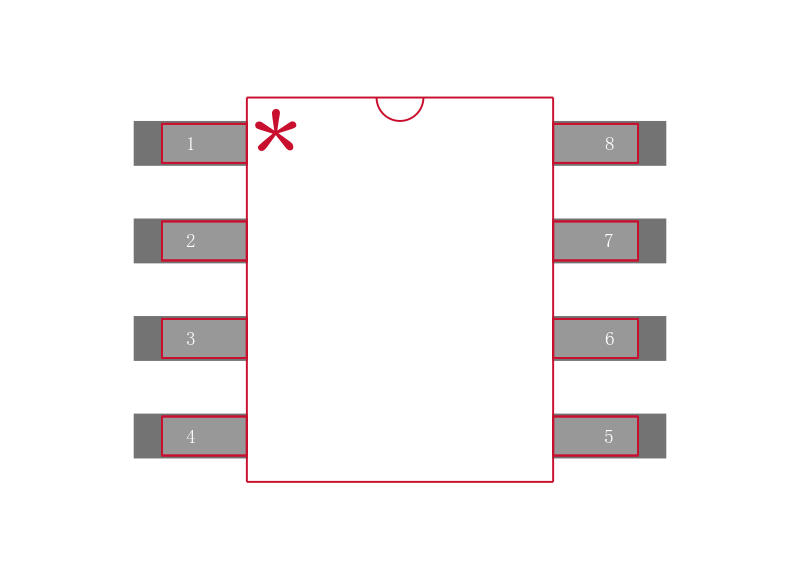

TEXAS INSTRUMENTS  OPA2652UG4  运算放大器, 双路, 700 MHz, 2个放大器, 335 V/µs, ± 3V 至 ± 6V, SOIC, 8 引脚

The is a dual SpeedPlus™ voltage-feedback Operational Amplifier for use with A/D drivers. It features a high gain bandwidth product of 200MHz on only 5.5mA/channel quiescent current. Intended for operation on ±5V supplies, it also supports applications on a single supply from +6 to +12V with 140mA output current. Its classical differential input, voltage-feedback design allows wide application in active filters, integrators, transimpedance amplifiers and differential receivers. The OPA2652 is internally compensated for unity gain stability. It has exceptional bandwidth 700MHz as an unity gain buffer, with little peaking 0dB typical. Excellent DC accuracy is achieved with a low 1.5mV input offset voltage and 300nA input offset current.

.

700MHz, G=+1 Wideband buffer

.

200MHz, G=+2 Wideband line driver

.

140mA High output current

.

5.5mA/channel Low supply current

.

0.05%/0.03° Low digital gain/digital phase

.

Green product and no Sb/Br
