OPA2354AIDGKRG4

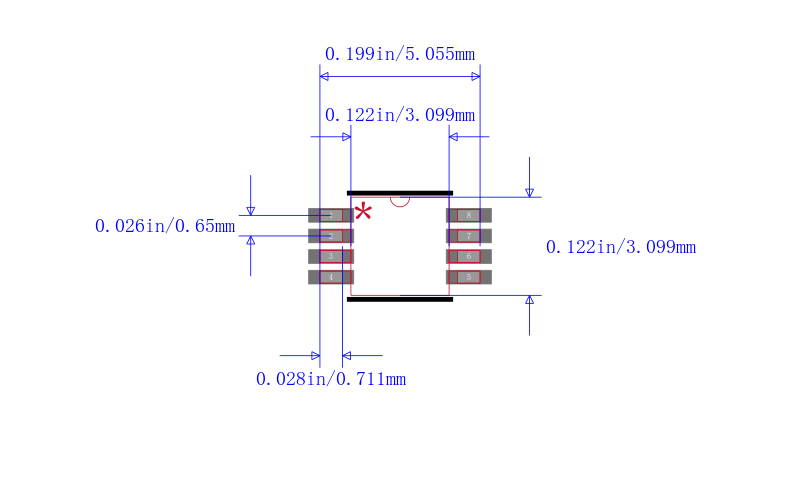

250MHz, Rail-to-Rail I/O, CMOS Dual Operational Amplifier 8-VSSOP -40℃ to 125℃
DESCRIPON
The OPA354 series of high-speed, voltage-feedback CMOS operational amplifiers are designed for video and other applications requiring wide bandwidth. They are unity-gain stable and can drive large output currents. Differential gain is 0.02% and differential phase is 0.09°. Quiescent current is only 4.9mA per channel.
FEATURES
UNITY-GAIN BANDWIDTH: 250MHz
WIDE BANDWIDTH: 100MHz GBW
HIGH SLEW RATE: 150V/µs
LOW NOISE: 6.5nV/√Hz
RAIL-TO-RAIL I/O
HIGH OUTPUT CURRENT: > 100mA
EXCELLENT VIDEO PERFORMANCE:
Diff Gain: 0.02%, Diff Phase: 0.09
0.1dB Gain Flatness: 40MHz
LOW INPUT BIAS CURRENT: 3pA
QUIESCENT CURRENT: 4.9mA
THERMAL SHUTDOWN
SUPPLY RANGE: 2.5V to 5.5V
MicroSIZE AND PowerPAD™ PACKAGES
