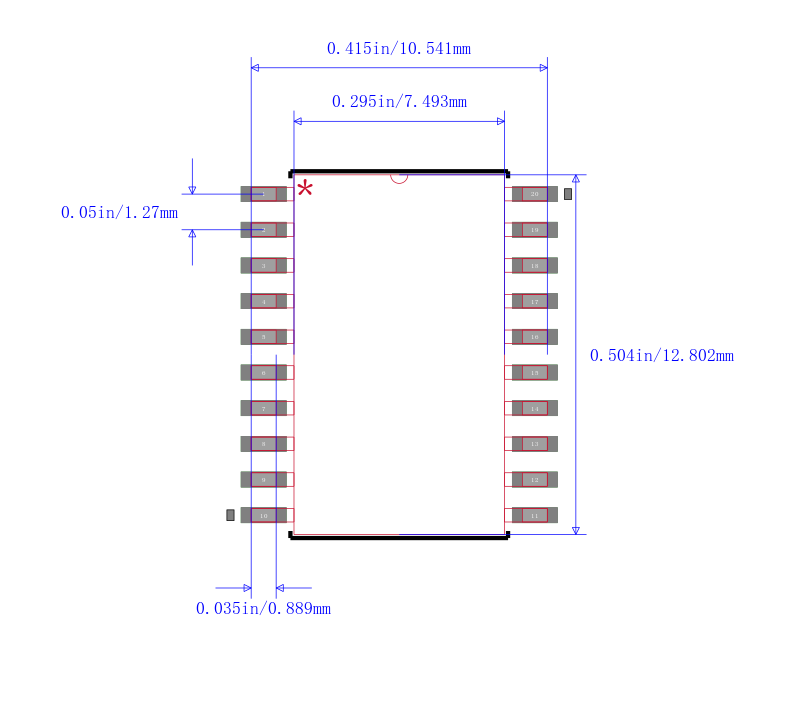

MC100LVEL90DWR2G
数据手册.pdf-3.3V / -5V三重ECL输入到LVPECL输出转换器 −3.3V / −5V Triple ECL Input to LVPECL Output Translator
The MC100LVEL90 is a triple ECL to LVPECL translator. The device receives either -3.3 V or -5 V differential ECL signals, determined by the V supply level, and translates them to +3.3 V differential LVPECL output signals.To accomplish the level translation, the LVEL90 requires three power rails. The V supply should be connected to the positive supply, and the V pin should be connected to the negative power supply. The GND pins, as expected, are connected to the system ground plane. Both V should be bypassed to ground via 0.015F capacitors.Under open input conditions, the Dbar input will be biased at V/2 and the D input will be pulled to V . This condition will force the Q output to a LOW, ensuring stability. pin, an internally generated voltage supply, is available to this device only. For single-ended input conditions, the unused differential input is connected to V as a switching reference voltage. may also rebias AC coupled inputs. When used, decouple V via a 0.01 5F capacitor and limit current sourcing or sinking to 0.5 mA. When not used, V
Features
---
|
- .
- 500ps Propagation Delays
- .
- ESD Protection: >2 kV HBM, >200 V MM
- .
- The 100 Series Contains Temperature Compensation
- .
- Operating Range: VCC = 3.0 V to 3.8 V; VEE = -3.0 V to -5.5 V; GND= 0 V
- .
- Internal Input Pulldown Resistors
- .
- Q Output will Default LOW with Inputs Open or at VEE
- .
- Meets or Exceeds JEDEC Spec EIA/JESD78 IC Latchup Test
- .
- Flammability Rating: UL-94 code V-0 @ 1/8", Oxygen Index 28 to 34
- .
- Transistor Count = 261 devices
- .
- Pb-Free Packages are Available
