MC100LVEL32MNR4G
数据手册.pdfECL 3.3V ±2分频器 3.3V ECL ±2 Divider

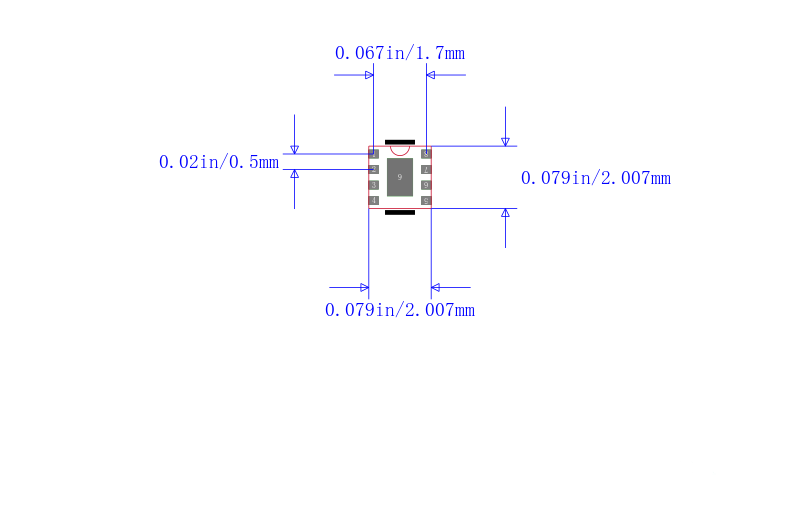

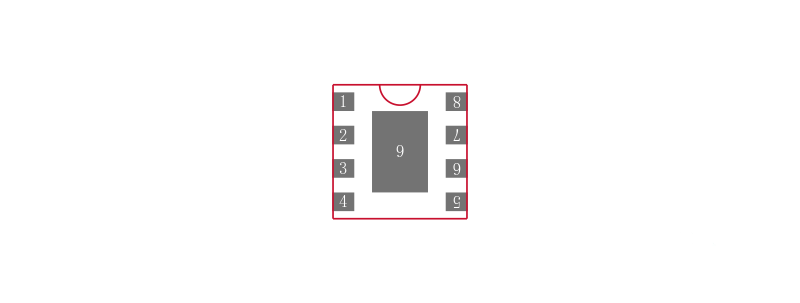

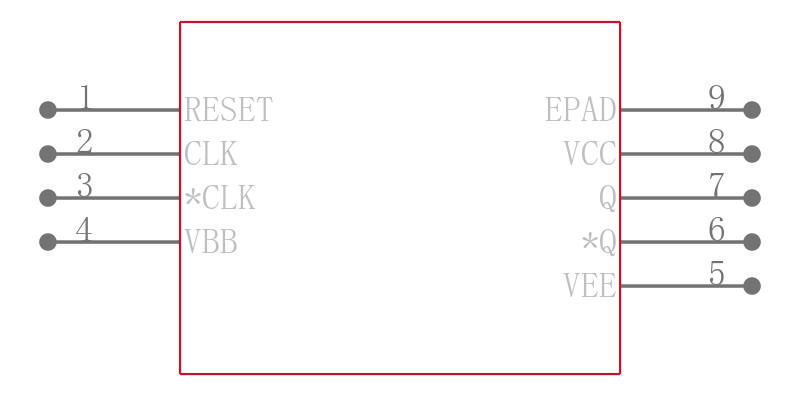

The MC100LVEL32 is an integrated w2 divider. The LVEL32 is functionally identical to the EL32, but operates from a 3.3 V supply.The reset pin is asynchronous and is asserted on the rising edge. Upon power-up, the internal flip-flop will attain a random state; the reset allows for the synchronization of multiple LVEL32"s in a system. pin, an internally generated voltage supply, is available to this device only. For single-ended input conditions, the unused differential input is connected to V as a switching reference voltage. V may also rebias AC coupled inputs. When used, decouple V via a 0.01 5F capacitor and limit current sourcing or sinking to 0.5 mA. When not used, V
Features
---
|
- .
- 510ps Propagation Delay
- .
- 2.6 GHz Typical Maximum Frequency
- .
- ESD Protection: >4 KV HBM, >200 V MM
- .
- The 100 Series Contains Temperature Compensation
- .
- PECL Mode Operating Range: VCC= 3.0 V to 3.8 V with VEE= 0 V
- .
- NECL Mode Operating Range: VCC= 0 V with VEE = -3.0 V to -3.8 V
- .
- Internal Input Pulldown Resistors
- .
- Meets or Exceeds JEDEC Spec EIA/JESD78 IC Latchup Test
- .
- Moisture Sensitivity Level 1
For Additional Information, see Application Note AND8003/D
- .
- Flammability Rating: UL-94 code V-0 @ 1/8", Oxygen Index 28 to 34
- .
- Transistor Count = 111 devices
- .
- Pb-Free Packages are Available
