MSP430G2452IRSA16T

混合信号微控制器 MIXED SIGNAL MICROCONTROLLER

DESCRIPON

The Texas Instruments MSP430™ family of ultra-low-power microcontrollers consist of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low-power modes, is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator DCO allows wake-up from low-power modes to active mode in less than 1 µs.

FEATURES

• Low Supply Voltage Range: 1.8 V to 3.6 V

• Ultra-Low Power Consumption

– Active Mode: 220 µA at 1 MHz, 2.2 V

– Standby Mode: 0.5 µA

– Off Mode RAM Retention: 0.1 µA

• Five Power-Saving Modes

• Ultra-Fast Wake-Up From Standby Mode in Less Than 1 µs

• 16-Bit RISC Architecture, 62.5-ns Instruction Cycle Time

• Basic Clock Module Configurations

– Internal Frequencies up to 16 MHz With Four Calibrated Frequencies

– Internal Very-Low-Power Low-Frequency LF Oscillator

– 32-kHz Crystal

– External Digital Clock Source

• One 16-Bit Timer_A With Three Capture/Compare Registers

• Up to 16 Touch-Sense Enabled I/O Pins

• Universal Serial Interface USI Supporting SPI and I2C

• 10-Bit 200-ksps Analog-to-Digital A/D Converter With Internal Reference, Sample-and-Hold, and Autoscan MSP430G2x52 Only

• On-Chip Comparator for Analog

• Brownout Detector

• Serial Onboard Programming, No External Programming Voltage Needed, Programmable Code Protection by Security Fuse

• On-Chip Emulation Logic With Spy-Bi-Wire Interface

• Package Options

– TSSOP: 14 Pin, 20 Pin

– PDIP: 20 Pin

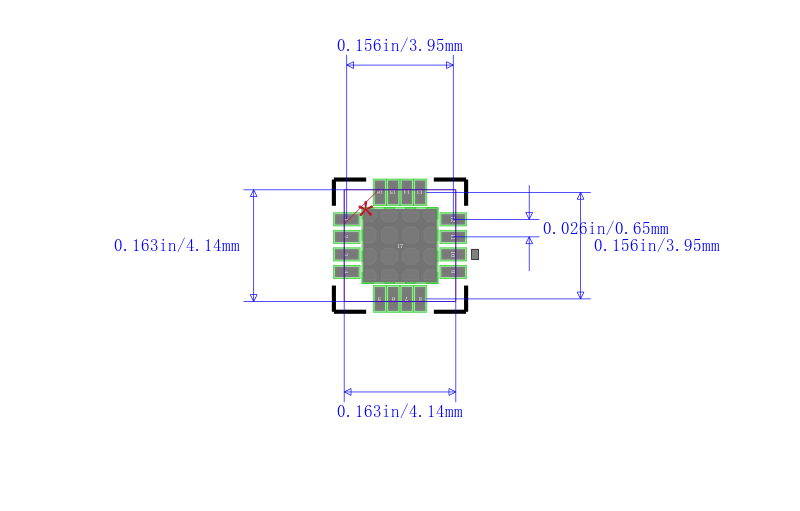

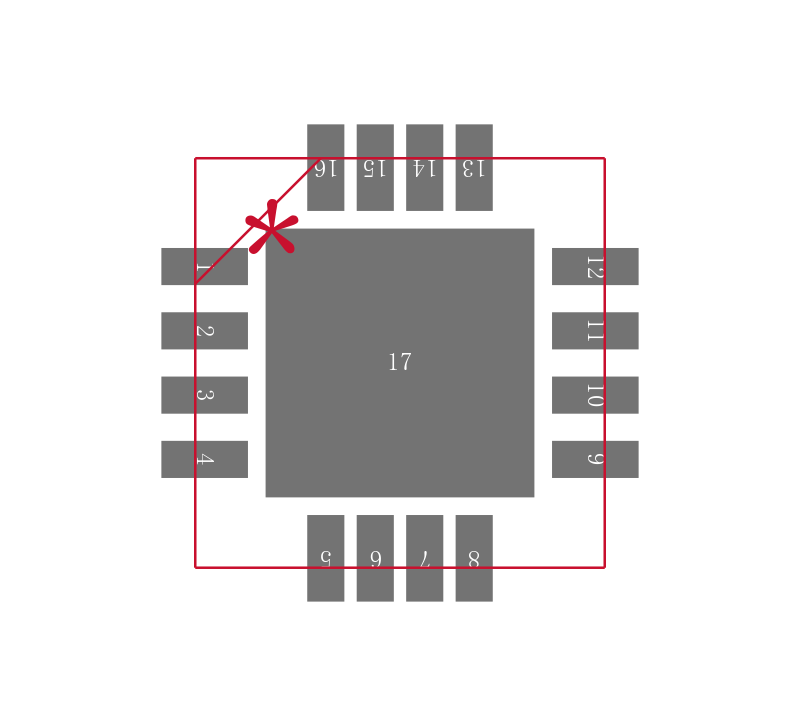

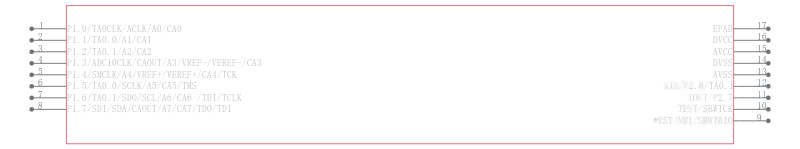

– QFN: 16 Pin
