MC12093MNR4G

ON SEMICONDUCTOR  MC12093MNR4G  PRESCALER, 1.1GHZ, DFN-8 新

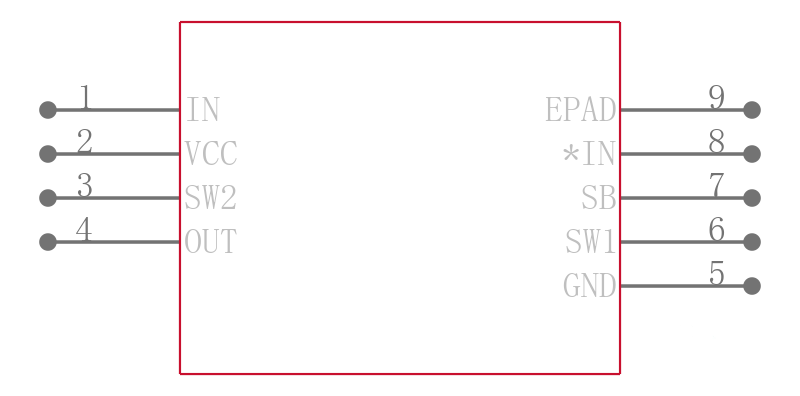

The MC12093 is a single modulus prescaler for low power frequency division of a 1.1 GHz high frequency input signal. MOSAIC Vtm technology is utilized to achieve low power dissipation of 6.75 mW at a minimum supply voltage of 2.7 V. On-chip output termination provides output current to drive a 2.0 pF typical high impedance load. If additional drive is required for the prescaler output, an external resistor can be added parallel from the OUT pin to GND to increase the output power. Care must be taken not to exceed the maximum allowable current through the output. Divide ratio control inputs SW1 and SW2 select the required divide ratio of 2, 4, or 8. Stand-By mode is featured to reduce current drain to 50 uA typical when the standby pin SB is switched LOW disabling the prescaler.

Features

---

 |

.

1.1 GHz Toggle Frequency

.

Supply Voltage 2.7 V to 5.5 Vdc

.

Low Power 3.0 mA Typical

.

Operating Temperature -40 to 85°C

.

Divide by 2, 4 or 8 Selected by SW1 and SW2 Pins

.

On-Chip Termination

.

Pb-Free Packages are Available
