MC74HC04ADG

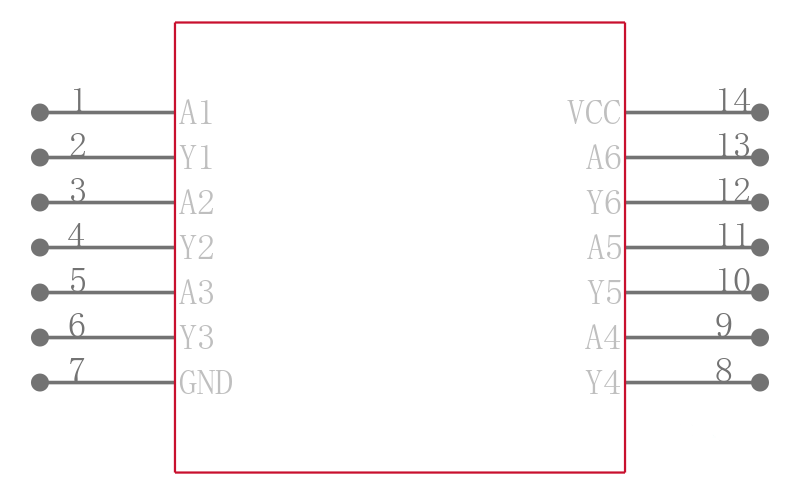

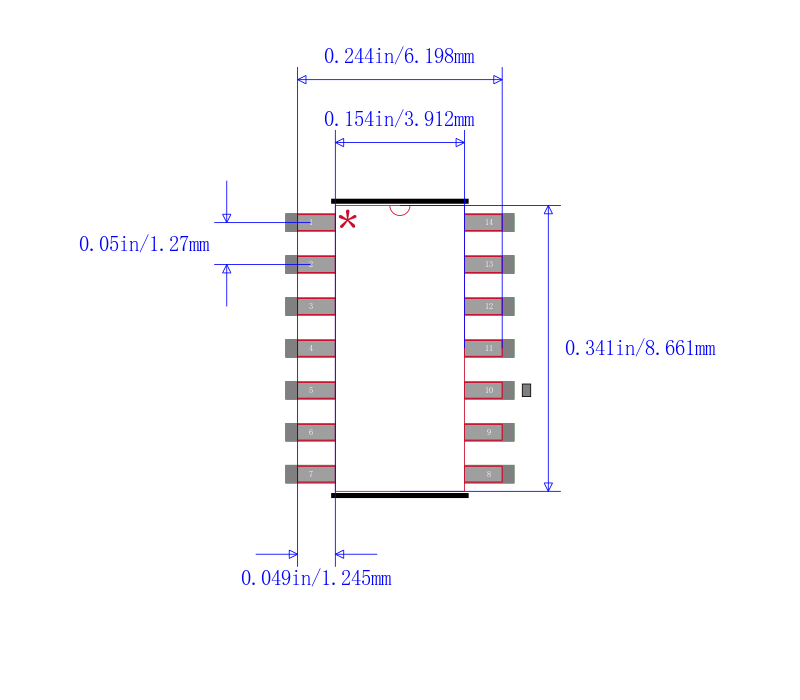

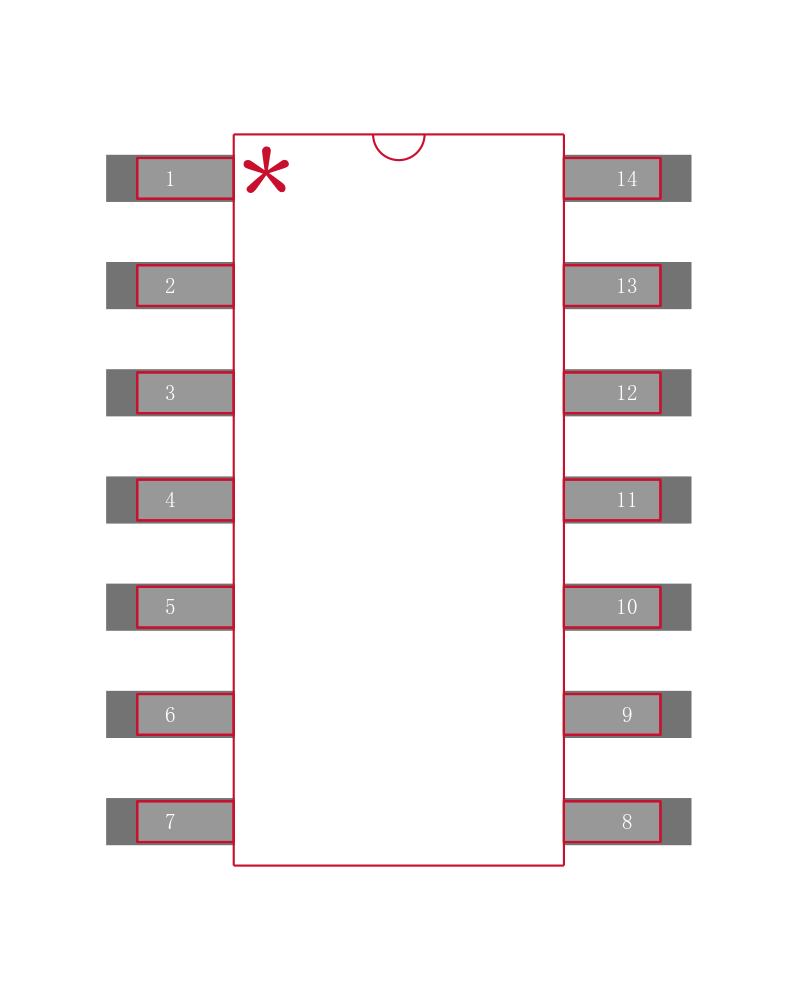

数据手册.pdfON SEMICONDUCTOR MC74HC04ADG 非门, HC系列, 1输入, 5.2 mA, 2V至6V, SOIC-14
The is a high-performance Silicon-Gate CMOS based Hex Inverter. The device is identical in pin out to the LS04 and the MC14069. The device inputs are compatible with Standard CMOS outputs, with pull-up resistors, they are compatible with LSTTL outputs. The device consists of six three-stage inverters.
- .
- 10 LSTTL loads output drive capability
- .
- Outputs directly interface to CMOS, NMOS and TTL
- .
- 1µA Low input current
- .
- High noise immunity characteristic of CMOS devices
- .
- In compliance with the JEDEC standard No.7A requirements
- .
- Chip complexity - 36 FETs or 9 equivalent gates
