L4949DR2

百毫安, 5.0 V ,低压差稳压器具有上电复位 100 mA, 5.0 V, Low Dropout Voltage Regulator with Power−On Reset

The L4949 is a monolithic integrated 5.0 V voltage regulator with a very low dropout and additional functions such as power−on reset and input voltage sense.

It is designed for supplying the micro−computer controlled systems especially in automotive applications.

Features

• Operating DC Supply Voltage Range 5.0 V to 28 V

• Transient Supply Voltage Up to 40 V

• Extremely Low Quiescent Current in Standby Mode

• High Precision Standby Output Voltage 5.0 V ±1%

• Output Current Capability Up to 100 mA

• Very Low Dropout Voltage Less Than 0.4 V

• Reset Circuit Sensing The Output Voltage

• Programmable Reset Pulse Delay With External Capacitor

• Voltage Sense Comparator

• Thermal Shutdown and Short Circuit Protections

• NCV Prefix for Automotive and Other Applications Requiring Site and Control Changes

• Pb−Free Packages are Available

L4949DR2中文资料参数规格
技术参数

输入电压DC 28.0V max

输出电压 5 V

输出电流 100 mA

跌落电压 0.3V @100mA

输入电压 ≤28 V

封装参数

安装方式 Surface Mount

引脚数 8

封装 SOIC-8

外形尺寸

封装 SOIC-8

物理参数

工作温度 -40℃ ~ 125℃

其他

产品生命周期 Obsolete

包装方式 Tape & Reel TR

符合标准

RoHS标准 Non-Compliant

含铅标准 Contains Lead

L4949DR2引脚图与封装图

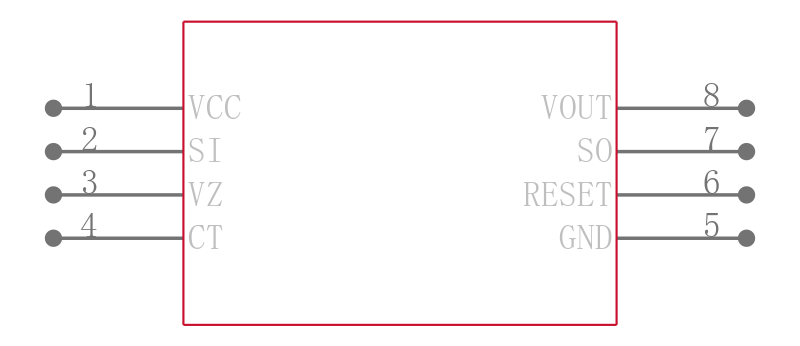

L4949DR2引脚图

L4949DR2引脚图

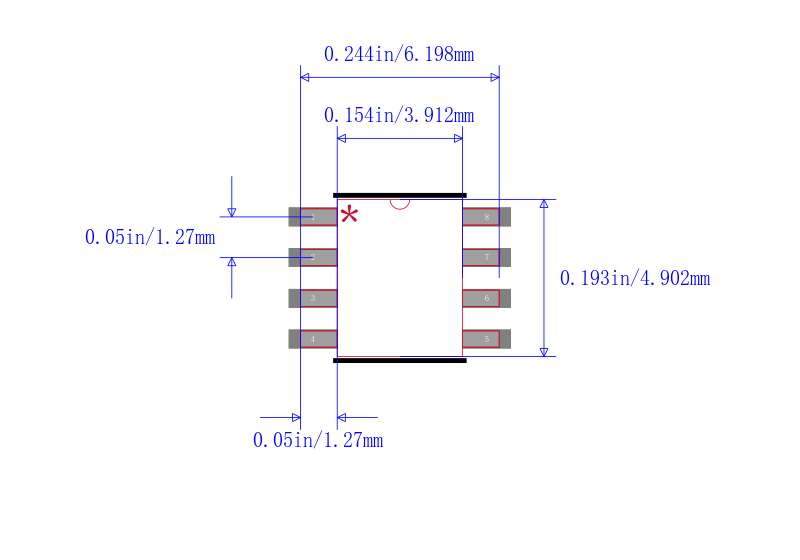

L4949DR2封装图

L4949DR2封装图

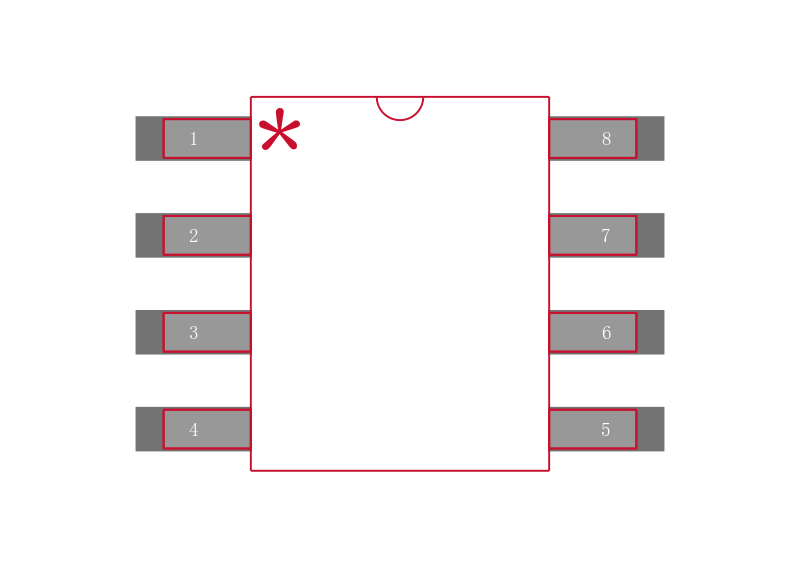

L4949DR2封装焊盘图

L4949DR2封装焊盘图
