LP3905SDX-30/NOPB

LP3905SDX-30/NOPB

TI(德州仪器) 主动器件

Battery Management Power Management IC PMIC For Low Power Handheld Applications 14-WSON -40℃ to 85℃

Handheld/Mobile Devices PMIC 14-WSON 4x4


得捷:
IC PWR MANAGEMENT DUAL 14WSON


贸泽:
Battery Management Power Management IC PMIC For Low Power Handheld Applications 14-WSON -40 to 85


艾睿:
Power Management System Li-Ion/NiCD/NiMH 600mA 1.2V/1.875V/2.8V 14-Pin WSON EP T/R


Win Source:
IC PWR MANAGEMENT DUAL 14WSON


LP3905SDX-30/NOPB中文资料参数规格
技术参数

输出电流 600 mA

通道数 4

跌落电压 80.0 mV

调节输出数 4

开关频率 2.00 MHz

拓扑结构 Buck

工作温度Max 85 ℃

工作温度Min 40 ℃

电源电压 3V ~ 5.5V

封装参数

安装方式 Surface Mount

封装 WFDFN-14

外形尺寸

长度 4 mm

宽度 4 mm

高度 0.8 mm

封装 WFDFN-14

物理参数

工作温度 -40℃ ~ 85℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

LP3905SDX-30/NOPB引脚图与封装图

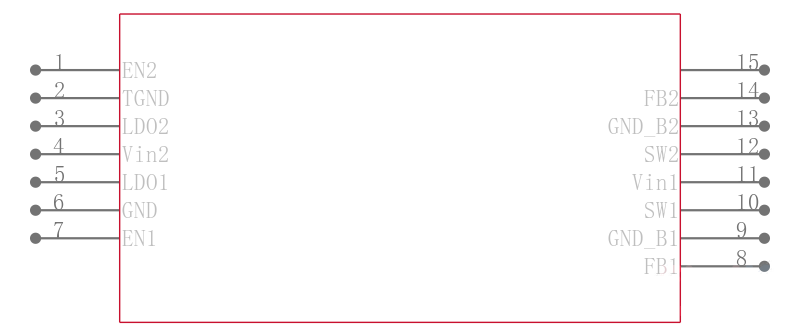

LP3905SDX-30/NOPB引脚图

LP3905SDX-30/NOPB引脚图

LP3905SDX-30/NOPB封装图

LP3905SDX-30/NOPB封装图

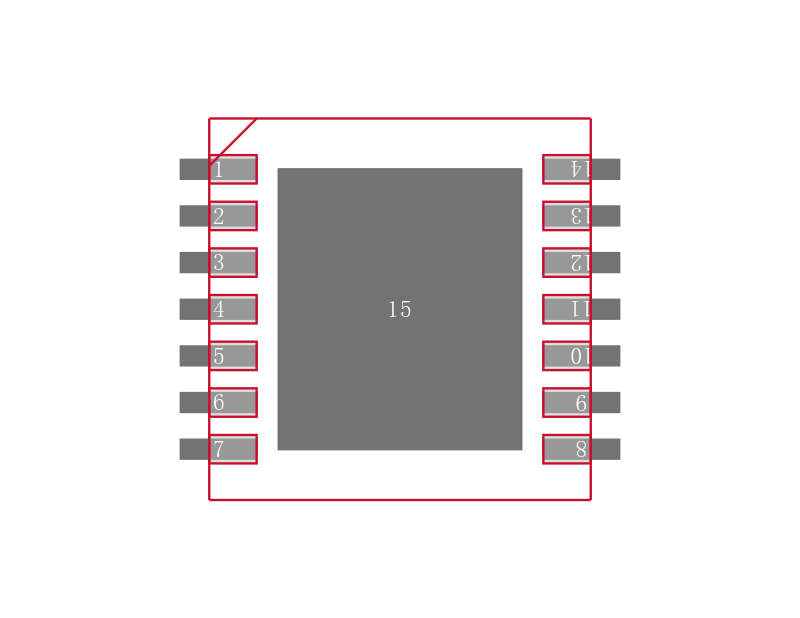

LP3905SDX-30/NOPB封装焊盘图

LP3905SDX-30/NOPB封装焊盘图

在线购买LP3905SDX-30/NOPB
型号 制造商 描述 购买
LP3905SDX-30/NOPB TI 德州仪器 Battery Management Power Management IC PMIC For Low Power Handheld Applications 14-WSON -40℃ to 85℃ 搜索库存
