LV8760T-MPB-E

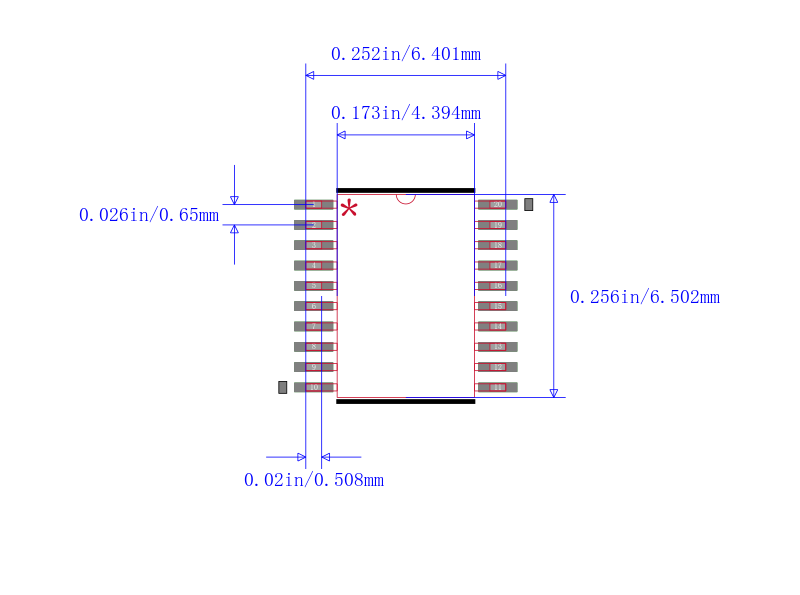

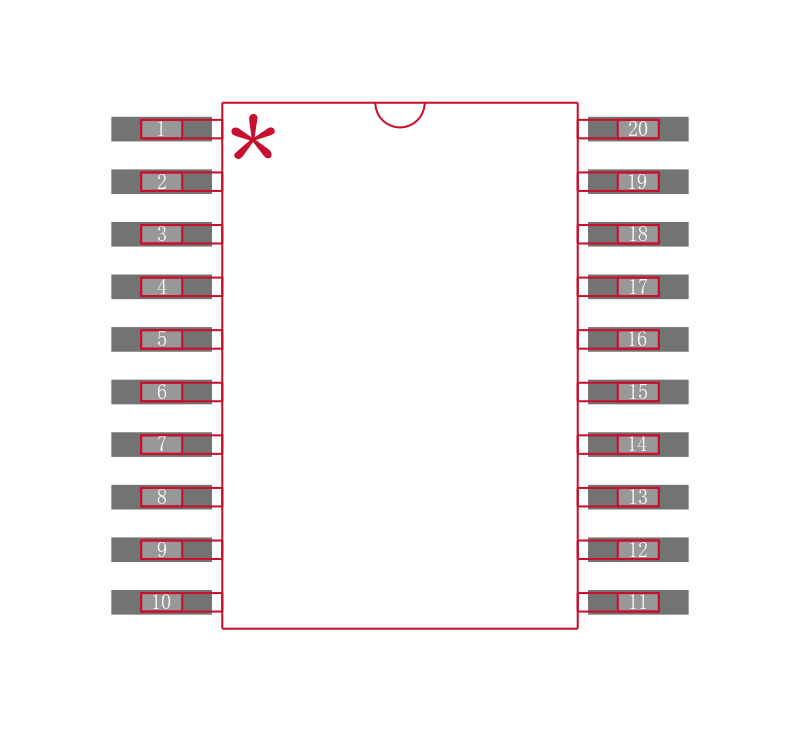

数据手册.pdfON SEMICONDUCTOR LV8760T-MPB-E 芯片, 驱动器, 半桥, 双向, 35V, 20TSSOP
The is a H-bridge Driver that can control four operation modes forward, reverse, brake and standby of a motor. The low on-resistance, zero standby current, highly efficient IC is optimal for use in driving brushed DC motors for office equipment.
- .
- Built-in current limiter circuit
- .
- Built-in thermal protection circuit
- .
- Built-in short-circuit protection function
- .
- Current protection
- .
- Safety design
- .
- High efficiency
- .
- Low consumption
- .
- Small design footprint
- .
- 0.52R Low ON resistance
- .
- 3.3W Maximum allowable power dissipation
