LB11961-TLM-H
数据手册.pdf单相全波风扇电机驱动器

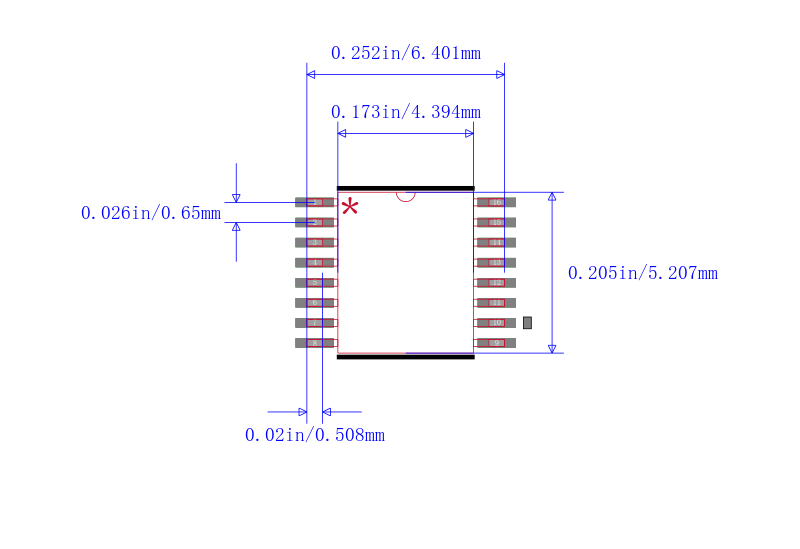

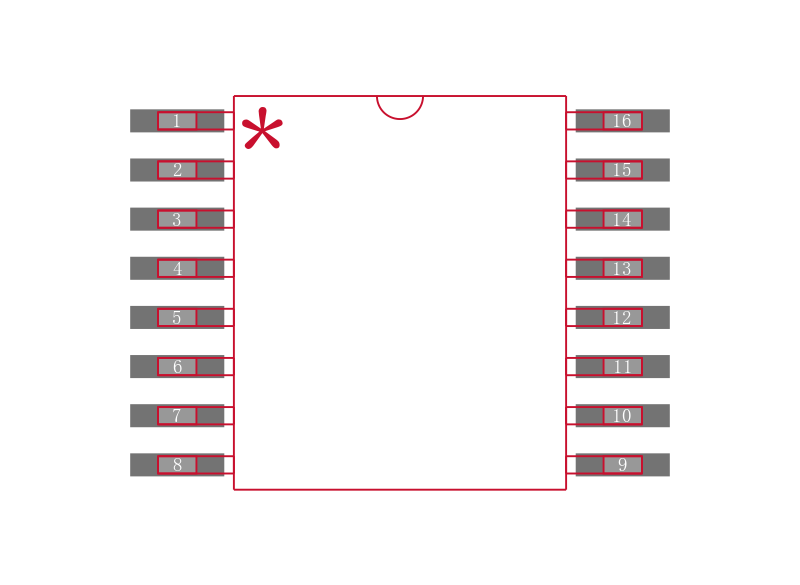

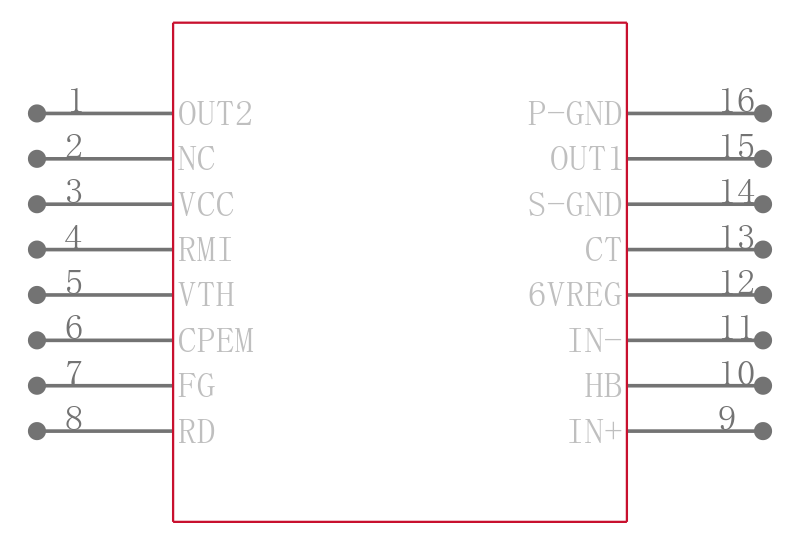

Overview
The LB11961 is a single-phase bipolar drive motor driver that easily implementsdirect PWM motor drive systems with excellent efficiency. The LB11961 is optimal for fan motor drive in personal computer power supply systems and CPU cooling fan systems.
Features
•Single-phase full-wave drive 16V, 1.0A transistors are built in
•Built-in variable speed function controlled by a thermistor input
The LB11961 can implement quiet, low-vibration variable speed control using externally clocked high side transistor direct PWM drive.
•Built-in regenerative diode Di; only requires a minimal number of external components.
•Built-in HB
•Minimum speed setting pin allows full-speed mode operation at startup
•Operates in full-speed mode when the thermistor is removed.
•Built-in lock protection and automatic recovery circuits
•FG speed detection and RD lock detection outputs
•Built-in thermal shutdown circuit
