LP2951-50DRGR

TEXAS INSTRUMENTS  LP2951-50DRGR  电压稳压器, LDO, 可调, 2V至30V输入, 380mV压差, 1.235V至30V/0.1A输出, WSON-8

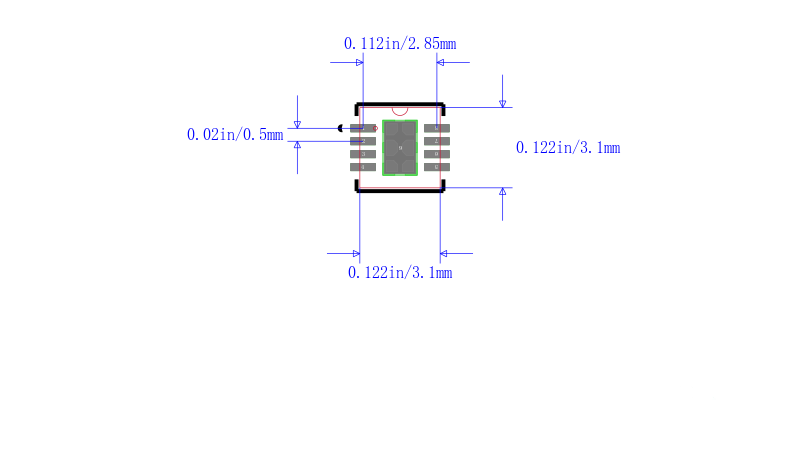

The is a single channel, fixed output micropower low dropout LDO voltage regulator 8 pin WSON package. This bipolar low dropout voltage regulator can be used as a regulator or reference. It provides adjustable output by leaving the SENSE and VTAP pins open and connecting FEEDBACK to an external resistor divider. The LP2951-50 has shutdown capability and remote sense capability for optimal output regulation and accuracy. It also offers additional functionality that makes it particularly suitable for battery powered applications. This regulator is designed to minimize all error contributions to the output voltage. The device can be used as either low power voltage references or 100mA regulator with a tight output tolerance 0.5% at 25°C, a very low output voltage temperature coefficient 20ppm typical, extremely good line and load regulation.

.

Fixed output voltage of 5V

.

Wide input voltage range from 2V to 30V

.

Rated output current of 100mA

.

Low dropout voltage of 380mV at 100mA

.

Low quiescent current of 75µA

.

Tight line regulation of 0.03%

.

Tight load regulation of 0.04%

.

Stable with low ESR >12mohm capacitors

.

Current and thermal limiting features

.

Operating temperature range from -40°C to 125°C

This device has limited built-in ESD protection. The leads should be shorted or device should be placed in conductive foam during storage or handling to prevent electrostatic damage to MOS gates.
