LF411CPE4
TI(德州仪器)
主动器件
JFET输入运算放大器 JFET-INPUT OPERATIONAL AMPLIFIER
description
This device is a low-cost, high-speed, JFET-input operational amplifier with very low input offset voltage and a maximum input offset voltage drift. It requires low supply current, yet maintains a large gain-bandwidth product and a fast slew rate. In addition, the matched high-voltage JFET input provides very low input bias and offset currents.
Low Input Bias Current, 50 pA Typ
Low Input Noise Current, 0.01 pA/√HzTyp
Low Supply Current, 2 mA Typ
High Input impedance, 1012 Ω Typ
Low Total Harmonic Distortion
Low 1/f Noise Corner, 50 Hz Typ

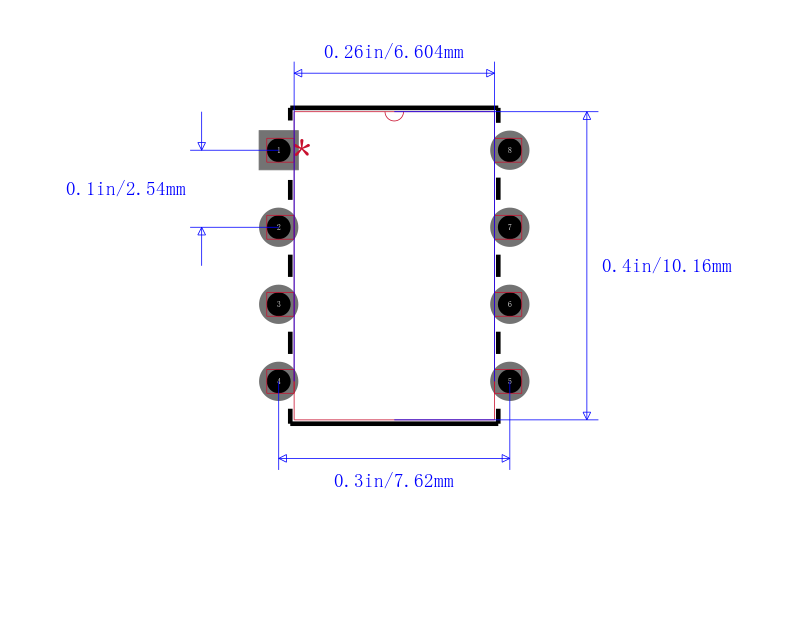

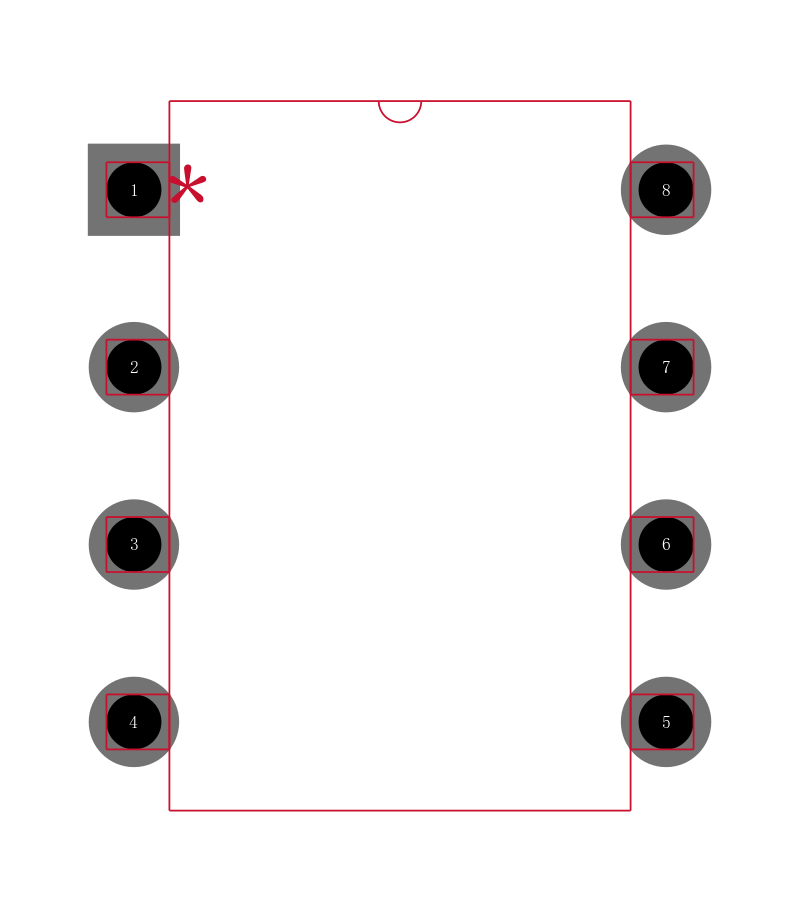

Package Options Include Plastic Small-Outline D and Standard P DIPs
