LM10CN

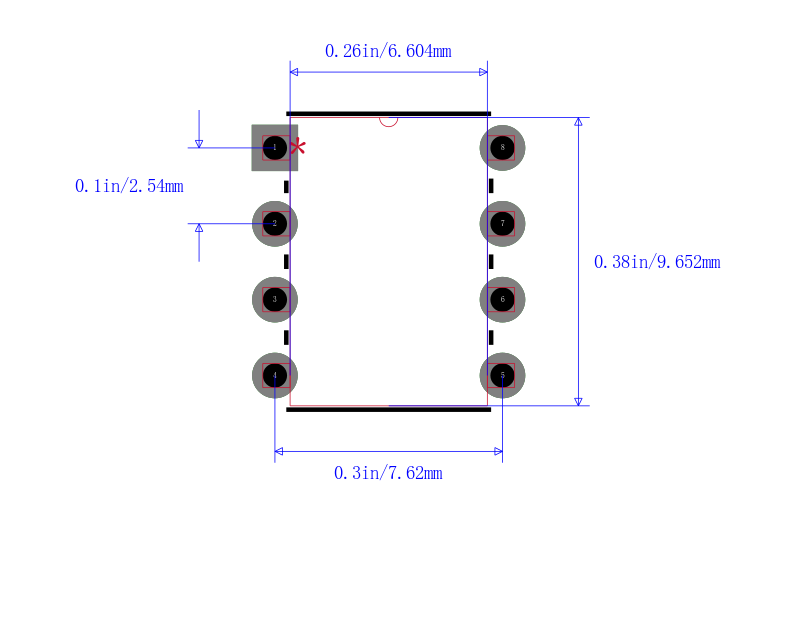

TEXAS INSTRUMENTS LM10CN 运算放大器, 单路, 90 kHz, 1个放大器, 0.2 V/µs, 1.1V 至 45V, DIP, 8 引脚
The is a monolithic linear Integrated Circuit consists of a precision reference, an adjustable reference buffer and an independent high-quality operational amplifier. The unit can operate from a total supply voltage as low as 1.1V or as high as 40V, drawing only 270µA. A complementary output stage swings within 15mV of the supply terminals or will deliver ±20mA output current with ±0.4V saturation. Reference output can be as low as 200mV. The circuit is recommended for portable equipment and is completely specified for operation from a single power cell. In contrast, high output-drive capability, both voltage and current, along with thermal overload protection, suggest it in demanding general-purpose applications.
- .
- 2mV Maximum input offset voltage
- .
- 0.7nA Maximum input bias current
- .
- 0.1% Maximum reference regulation
- .
- 2µV/°C Offset voltage drift
This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
