LM5122QMH/NOPB

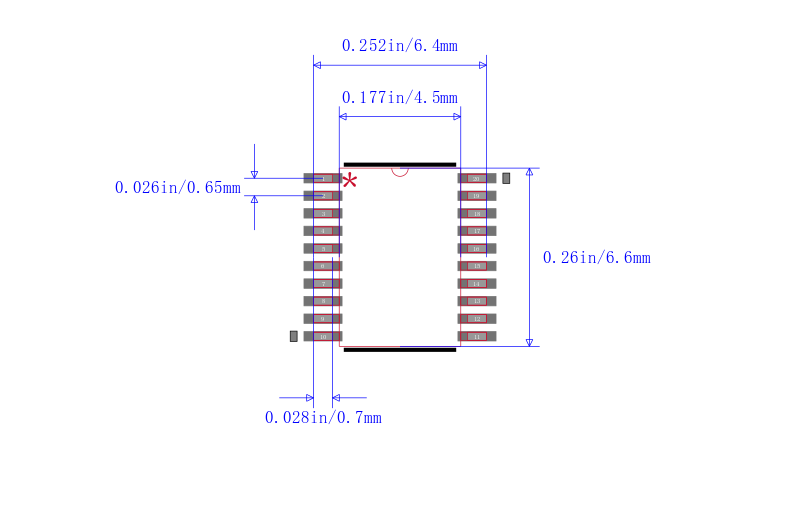

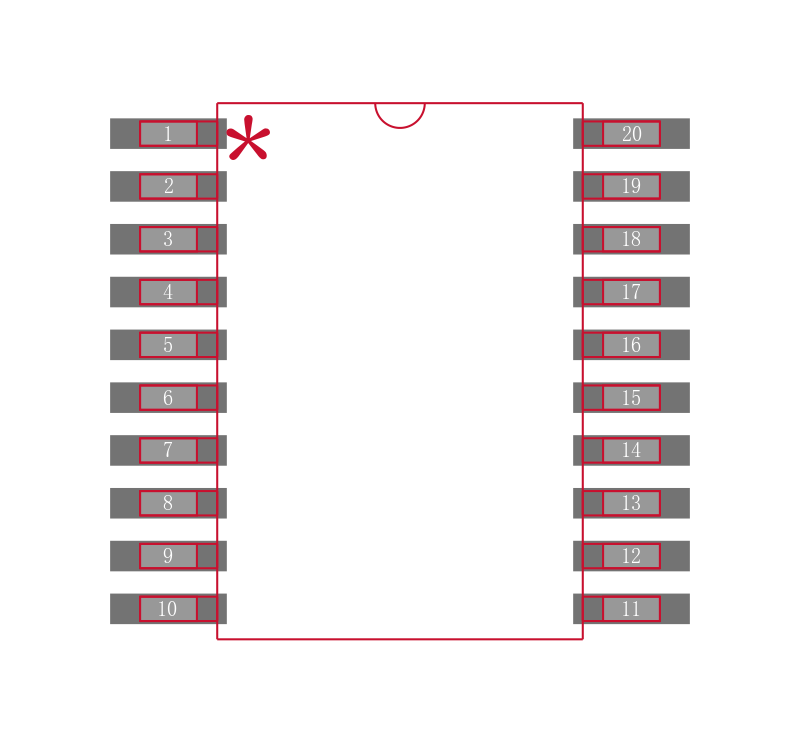

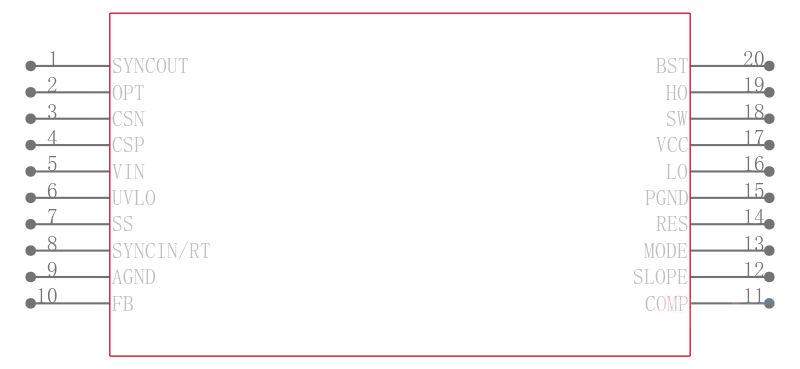

TEXAS INSTRUMENTS LM5122QMH/NOPB 直流/直流控制器, 多相, 4.5V至65V, 1路输出, 同步升压, 975kHz, HTSSOP-20
The is a multiphase capable synchronous Boost Controller intended for high-efficiency synchronous boost regulator applications. The control method is based upon peak current-mode control. current-mode control provides inherent line feed-forward, cycle-by-cycle current limiting and ease of loop compensation. The switching frequency is programmable up to 1MHz. Higher efficiency is achieved by two robust N-channel MOSFET gate drivers with adaptive dead-time control. User-selectable diode emulation mode also enables discontinuous mode operation for improved efficiency at light load conditions. An internal charge pump allows 100% duty cycle for high-side synchronous switch Bypass operation. A 180° phase shifted clock output enables easy multi-phase interleaved configuration. Additional features include thermal shutdown, frequency synchronization, hiccup mode current limit and adjustable line undervoltage lockout.
- .
- Peak current mode control
- .
- Robust 3A Integrated gate drivers
- .
- Adaptive dead-time control
- .
- Programmable cycle-by-cycle current limit
- .
- Hiccup mode overload protection
- .
- Programmable line UVLO
- .
- Programmable soft-start
- .
- Thermal shutdown protection
- .
- Programmable slope compensation
- .
- Programmable skip cycle mode reduces standby power
- .
- Allows external VCC supply
- .
- Inductor DCR current sensing capability
- .
- Multiphase capability
- .
- Green product and no Sb/Br
Device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
