AD827JRZ-16-REEL

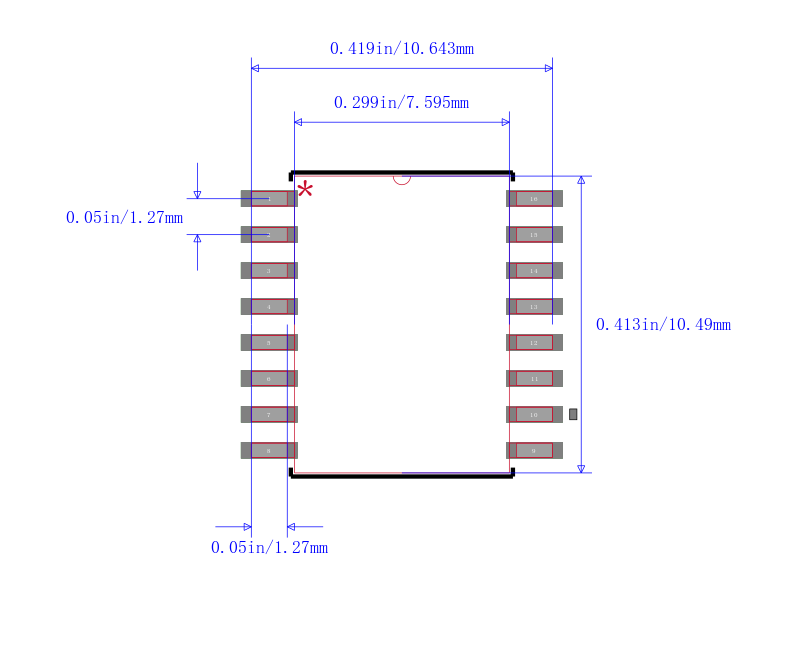

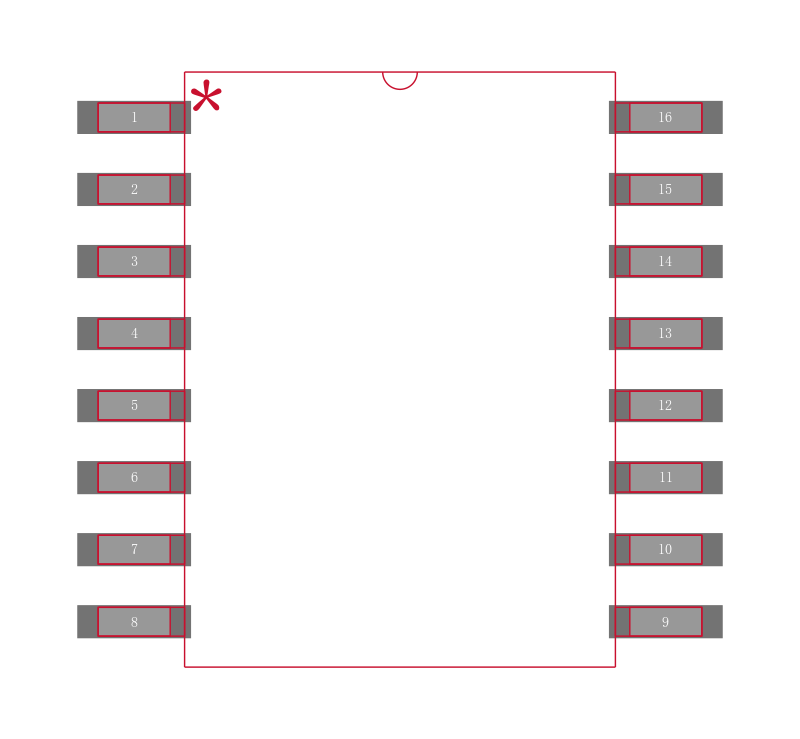

IC OPAMP GP 50MHz 16SOIC

Product Details

The AD827 is a dual version of Analog Device"s industry-standard AD847 op amp. Like the AD847, it provides high speed, low power performance at low cost. The AD827 achieves a 300 V/µs slew rate and 50 MHz unity-gain bandwidth while consuming only 100 mW when operating from ±5 volt power supplies. Performance is specified for operation using ±5 V to ±15 V power supplies.

The AD827 offers an open-loop gain of 3,500 V/V into 500 Ohm loads. It also features a low input voltage noise of 15 nV/rootHz, and a low input offset voltage of 2 mV maximum. Common-mode rejection ratio is a minimum of 80 dB. Power supply rejection ratio is maintained at better than 20 dB with input frequencies as high as 1 MHz, thus minimizing noise feedthrough from switching power supplies.

The AD827 is also ideal for use in demanding video applications, driving coaxial cables with less than 0.04% differential gain and 0.19° differential phase errors for 643 mV p-p into a 75 Ohm reverse terminated cable.

The AD827 is also useful in multichannel, high speed data conversion systems where its fast 120 ns to 0.1% settling time is of importance. In such applications, the AD827 serves as an input buffer for 8-bit to 10-bit A/D converters and as an output amplifier for high speed D/A converters.

### Features and Benefits

.

High Speed

.

50 MHz Unity Gain Stable Operation

.

300 V/ms Slew Rate

.

120 ns Settling Time

.

Drives Unlimited Capacitive Loads

.

Excellent Video Performance

.

0.04% Differential Gain @ 4.4 MHz

.

0.198% Differential Phase @ 4.4 MHz

.

Good DC Performance

.

2 mV max Input Offset Voltage

.

15 mV/°C Input Offset Voltage Drift

.

Available in Tape and Reel in Accordance with

.

EIA-481A Standard

.

Low Power

.

Only 10 mA Total Supply Current for Both Amplifiers

.

5 V to 15 V Supplies
