AD8016AREZ-REEL7

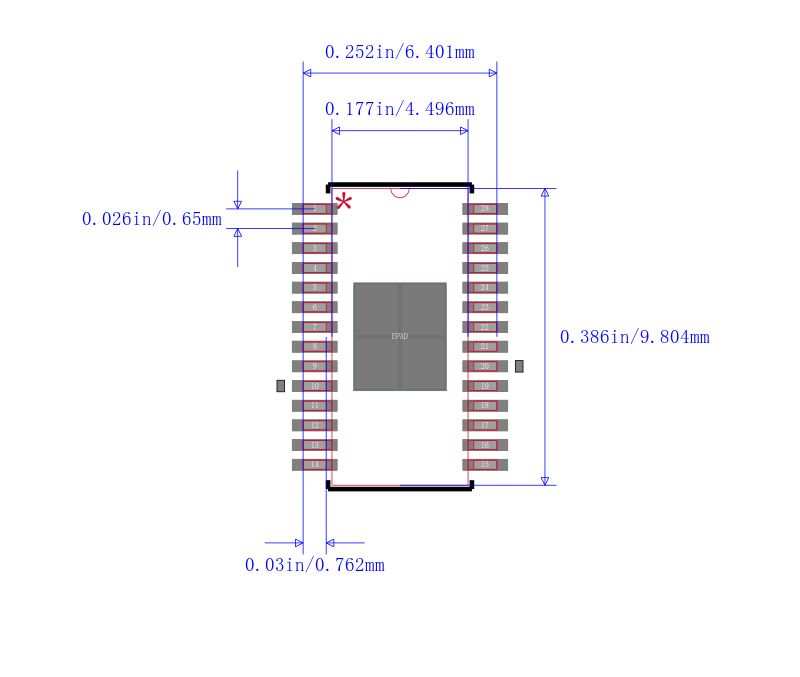

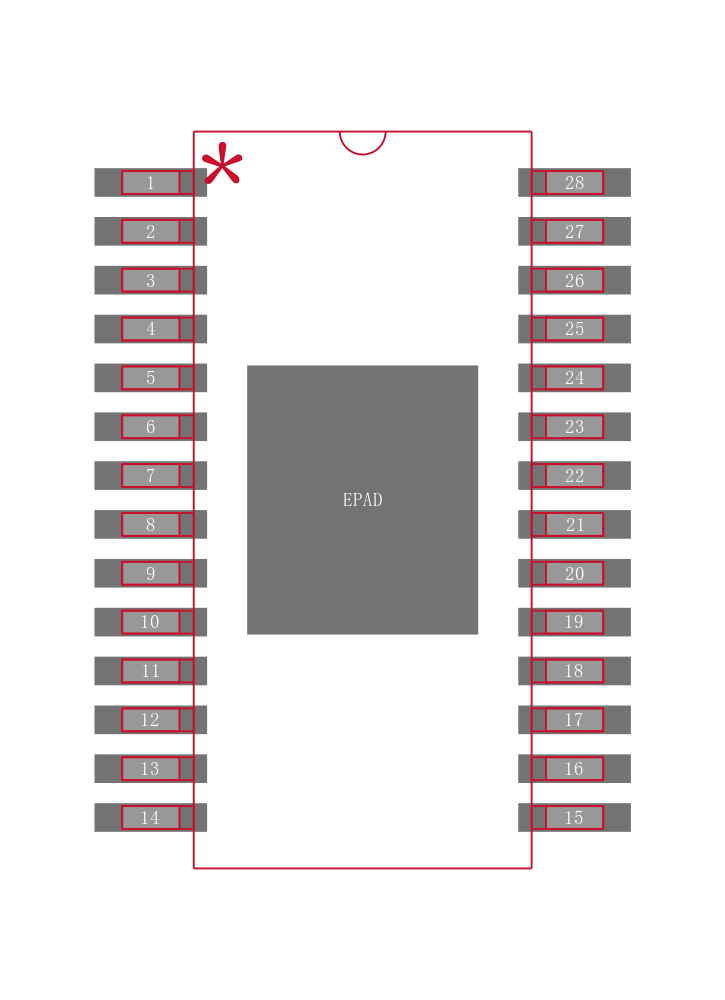

ADSL Driver Dual 28Pin TSSOP EP T/R

Product Details

The AD8016 is a 2nd generation DSL line driver capable of delivering full rate ADSL from the Central Office on a cool 1.5 W total power dissipation.

With the addition of a flexible Standby functionality, and packaged in a 20-Lead PSOP, a 24-Lead SOIC, and a 28-Lead TSSOP package, the AD8016 is optimized for DSL line driving at both ends of the line. Novel circuit design and a new ±12 V, high speed bipolar process enable each amplifier in the dual AD8016 to deliver 20 V pk-to-pk output voltage and more than 400 mA typical output current.

The combination of a breakthrough in two stage current gain and high speed bipolar process technology means that the AD8016 can deliver low distortion output voltages to within 2 V of the power supply rail, setting the standard in high efficiency.

### Features and Benefits

.

xDSL Line Driver that Features Full ADSL CO CentralOffice Performance on ±12 V Supplies

.

Low Power Operation

±5 V to ±12 V Voltage Supply

12.5 mA/Amp Typ Total Supply Current

Power Reduced Keep Alive

Current of 4.5 mA/Amp

.

High Output Voltage and Current Drive

IOUT = 600 mA

40 V p-p Differential Output Voltage

RL = 50 Ω,VS = ±12 V

.

Low Single-Tone Distortion

–75 dBc @ 1 MHz SFDR,

RL = 100 Ω, VO = 2 V p-p

MTPR = –75 dBc, 26 kHz to 1.1 MHz,

ZLINE = 100 Ω,

PLINE = 20.4 dBm

.

High Speed

78 MHz Bandwidth –3 dB, G = +5

40 MHz Gain Flatness

1000 V/µs Slew Rates
