20020006-H031B01LF、TJ03515600J0G、1779990对比区别

高亮显示差异参数

型号 20020006-H031B01LF TJ03515600J0G 1779990

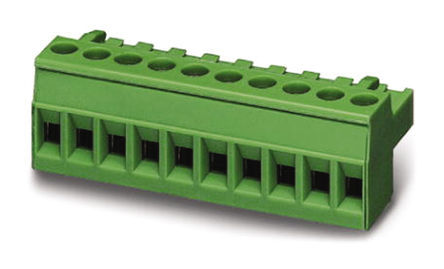

描述 5.08 mm Pitch FCI Terminal Block Plugs, Top EntryRobust and solid design Rated at 12A End-to-end stackable 12-24 AWG Durability: 200 cycles ### 注Wires shown in image not supplied with connector.### 认可UL recognised for US and Canada### 5.08 mm Pitch FCI Terminal BlocksFCI’s PCB signal 5.08 mm pitch Terminal Blocks. Featuring proven high performance Cage clamp technology that ensures a perfect connection time after time. These 5.08 mm pitch signal terminal blocks are suitable for for a wide variety of applications including: industrial, instrumentation and communication systems.TERM BLOCK PLUG 3POS STR 5.08MMPhoenix Contact COMBICON MSTBT 系列 5.08mm 节距 3 路 母 绿色 插头 1779990, 螺钉端接

数据手册 ---

制造商 FCI Electronics (法马通) FCI Electronics (法马通) Phoenix (菲尼克斯)

分类 接线端子接线端子接线端子

安装方式 - Screw Screw

引脚间距 - - 5.08 mm

触点数 3 - 3

线规 12AWG ~ 24AWG 12AWG ~ 24AWG 12AWG ~ 30AWG

触点电镀 Tin - Tin

额定电流 12 A - 12 A

排数 1 - 1

电路数 3 - 3

易燃性等级 - - UL 94 V-0

针脚数 3 3 3

安装角度 - - 90.0 °

额定电流(Max) 12A/触头 - 12 A

额定电压(Max) 300 V - 320 V

额定电压 300 V - 630 V

工作电压(Max) 300 V - 320 V

工作温度(Max) 115 ℃ - -

工作温度(Min) -40 ℃ - -

长度 - - 15.2 mm

宽度 - - 18.2 mm

高度 15.1 mm - 15 mm

引脚间距 - - 5.08 mm

外壳颜色 Green - Green

颜色 Green Green Green

触点材质 Copper Alloy - Copper Alloy

外壳材质 - - Nylon

材质 Nylon - -

工作温度 -40℃ ~ 115℃ -40℃ ~ 115℃ -

产品生命周期 Active - Active

包装方式 Box Bulk Bulk

RoHS标准 RoHS Compliant RoHS Compliant RoHS Compliant

含铅标准 Lead Free Lead Free Lead Free

REACH SVHC版本 2015/06/15 - -

ECCN代码 - - EAR99

HTS代码 - - 8536694040
