LQH88PN6R8N38L、SRN8040-6R8Y、LQH88PN6R8N38K对比区别

高亮显示差异参数

型号 LQH88PN6R8N38L SRN8040-6R8Y LQH88PN6R8N38K

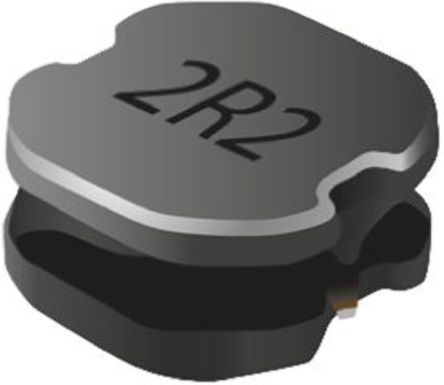

描述 片式电感器（片状线圈）功率电感（绕线型） LQH88P系列 Chip Inductor (Chip Coil) Power Inductor (Wire Wound Type) LQH88P SeriesSRN8040 Series Semi Magnetically Shielded Wire Wound ChokesBourns® SRN8040 Series SMD Semi-shielded Power Inductors with a high rated current. Component height of 4mm Inductance range from 0.5 to 100uH Rated current of up to 10A Applications include: DC/DC converters; Notebook computers; Digital video cameras; HDDs; Cell phones; Televisions, LCD displays ### Bourns 非标准表面安装电感器（扼流圈）片式电感器（片状线圈）功率电感（绕线型） LQH88P系列 Chip Inductor (Chip Coil) Power Inductor (Wire Wound Type) LQH88P Series

数据手册 ---

制造商 muRata (村田) Bourns J.W. Miller (伯恩斯) muRata (村田)

分类 电感电感

安装方式 Surface Mount Surface Mount Surface Mount

封装 3131 (8080 metric) 8 mm x 8 mm 3131

引脚数 - 2 -

额定电流 3.8 A 3.9 A 3.8 A

电感 6.8 µH 6.8 µH 6.8 µH

电感公差 ±30 % ±30 % ±30 %

电阻(DC） 22 mΩ ≤33 mΩ 22 mΩ

容差 ±30 % ±30 % -

自谐频率 20 MHz 23 MHz -

电阻 22.0 mΩ - -

共振频率 20.0 MHz - -

测试频率 100 kHz 100 kHz -

工作温度(Max) 85 ℃ 105 ℃ -

工作温度(Min) -40 ℃ -40 ℃ -

Q值 - 13 -

电阻(DC Max) - 0.033 Ω -

封装 3131 (8080 metric) 8 mm x 8 mm 3131

长度 8.2 mm 8 mm -

宽度 8.2 mm 8 mm -

高度 4 mm 4 mm -

产品生命周期 Obsolete Not Recommended for New Design Obsolete

包装方式 Tape & Reel (TR) Tape & Reel (TR) -

RoHS标准 RoHS Compliant RoHS Compliant RoHS Compliant

含铅标准 Lead Free Lead Free -

REACH SVHC版本 - 2016/06/20 -

工作温度 -40℃ ~ 85℃ -40℃ ~ 125℃ -

香港进出口证 - NLR -
