SA60AHE3/73、SA60A-E3/73、SA60HE3/73对比区别

高亮显示差异参数

型号 SA60AHE3/73 SA60A-E3/73 SA60HE3/73

描述 * Glass passivated chip junction * Available in uni-directional and bi-directional * 500W peak pulse power capability with a 10/1000μs waveform, repetitive rate (duty cycle): 0.01% * Excellent clamping capability * Very fast response time * Low incremental surge resistance * Solder dip 275℃ max. 10 s, per JESD 22-B106 * AEC-Q101 qualified * Minumum breakdown voltage 66.7VESD 抑制器/TVS 二极管 500W 60V UnidirectESD 抑制器/TVS 二极管 RECOMMENDED ALT 625-SA60AHE3/73

数据手册 ---

制造商 Vishay Semiconductor (威世) Vishay Semiconductor (威世) Vishay Semiconductor (威世)

分类 TVS二极管TVS二极管TVS二极管

安装方式 Through Hole Through Hole Through Hole

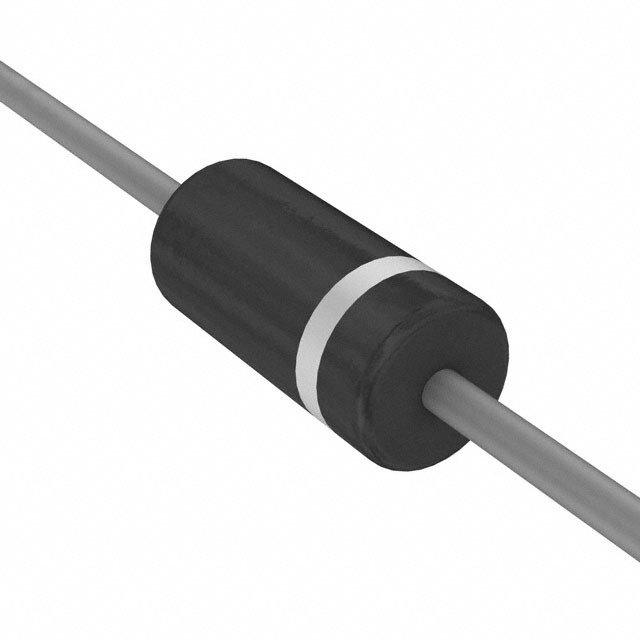

封装 DO-204AC DO-204AC DO-204AC

工作电压 - 60 V 60 V

击穿电压 66.7 V 66.7 V 66.7 V

钳位电压 96.8 V 96.8 V 107 V

脉冲峰值功率 500 W 500 W 500 W

最小反向击穿电压 66.7 V 66.7 V 66.7 V

工作温度(Max) 175 ℃ 175 ℃ 175 ℃

工作温度(Min) 55 ℃ -55 ℃ -55 ℃

耗散功率 500 W - -

封装 DO-204AC DO-204AC DO-204AC

工作温度 -55℃ ~ 175℃ (TJ) -55℃ ~ 175℃ -55℃ ~ 175℃ (TJ)

产品生命周期 Active Active -

包装方式 Ammo Pack Ammo Pack Ammo Pack

RoHS标准 RoHS Compliant RoHS Compliant RoHS Compliant

含铅标准 Lead Free Lead Free Lead Free
