20020006-G031B01LF、MC000177、MC 100-50803对比区别

高亮显示差异参数

型号 20020006-G031B01LF MC000177 MC 100-50803

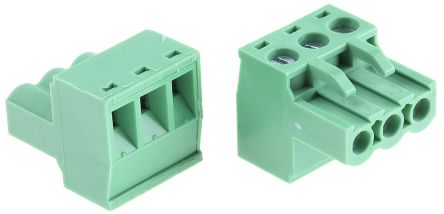

描述 5.0 mm Pitch FCI Terminal Block Plugs, Top EntryRobust and solid design Rated at 12A End-to-end stackable 12-24 AWG Durability: 200 cycles ### 注Wires shown in image not supplied with connector.### 认可UL recognised for US and Canada### 5.0 mm Pitch FCI Terminal BlocksFCI’s PCB signal 5 mm pitch Terminal Blocks. Featuring proven high performance Cage clamp technology that ensures a perfect connection time after time. These 5 mm pitch signal terminal blocks are suitable for for a wide variety of applications including: industrial, instrumentation and communication systems.MULTICOMP  MC000177  插拔式接线端子, 3 路, 300 V, 16 A, 5.08 mm, 24 AWG, 12 AWGLUMBERG  MC 100-50803  插拔式接线端子, 3 路, 300 V, 16 A, 5.08 mm, 24 AWG, 14 AWG

数据手册 ---

制造商 FCI Electronics (法马通) Multicomp Lumberg (隆堡电子)

分类 接线端子接线端子接线端子

安装方式 - - Screw

引脚间距 - - 5.08 mm

触点数 3 3 3

极性 - - Female

线规 12AWG ~ 24AWG - 14.0 AWG

触点电镀 Tin Tin Tin

额定电压(AC) - - 300 V

额定电流 12 A 16 A 16 A

绝缘电阻 - - 5000 MΩ

排数 1 - 1

电路数 3 - 3

针脚数 3 3 3

额定电流(Max) 12A/触头 - 16 A

工作温度(Max) 115 ℃ - 105 ℃

工作温度(Min) -40 ℃ - -40 ℃

额定电压(Max) 300 V - 300 VAC

额定电压 300 V 300 V 300 V

工作电压(Max) 300 V - -

高度 15.1 mm - 15 mm

引脚间距 - - 5.08 mm

触点材质 Copper Alloy Phosphor Bronze Copper

工作温度 -40℃ ~ 115℃ - -55℃ ~ 105℃

外壳颜色 Green - -

颜色 Green - -

材质 Nylon - -

RoHS标准 RoHS Compliant RoHS Compliant RoHS Compliant

REACH SVHC标准 - No SVHC No SVHC

REACH SVHC版本 2015/06/15 - 2015/12/17

含铅标准 Lead Free - -

包装方式 Bulk - -
