20020008-H051B01LF、TS05515A00J0G对比区别

高亮显示差异参数

型号 20020008-H051B01LF TS05515A00J0G

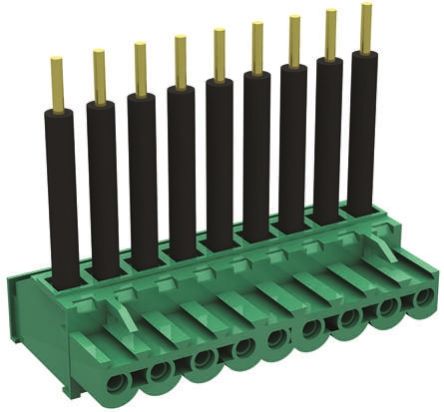

描述 5.08 mm Pitch FCI Terminal Block Plugs, Side EntryRobust and solid design Rated at 12A End-to-end stackable 12-24 AWG Durability: 200 cycles ### 注Wires shown in image not supplied with connector.### 认可UL recognised for US and Canada### 5.08 mm Pitch FCI Terminal BlocksFCI’s PCB signal 5.08 mm pitch Terminal Blocks. Featuring proven high performance Cage clamp technology that ensures a perfect connection time after time. These 5.08 mm pitch signal terminal blocks are suitable for for a wide variety of applications including: industrial, instrumentation and communication systems.Conn Terminal Block F 5POS 7.62mm Screw ST Cable Mount 15A Box

数据手册 --

制造商 FCI Electronics (法马通) FCI Electronics (法马通)

分类 接线端子接线端子

安装方式 - Screw

线规 12AWG ~ 24AWG 12AWG ~ 24AWG

针脚数 5 5

触点数 5 -

触点电镀 Tin -

额定电流 12 A -

工作温度(Max) 115 ℃ -

工作温度(Min) -40 ℃ -

额定电压 300 V -

外壳颜色 - Green

颜色 Green Green

触点材质 Copper Alloy Phosphor Bronze

工作温度 -40℃ ~ 115℃ -40℃ ~ 115℃

材质 Nylon -

包装方式 Tray Bulk

RoHS标准 RoHS Compliant RoHS Compliant

含铅标准 Lead Free Lead Free

REACH SVHC版本 2015/06/15 -

长度 25.4 mm -

宽度 12.6 mm -

高度 26 mm -
