3549H-1AE-203A、AMM20B5A1BLASL380、3549H-1AA-203A对比区别

高亮显示差异参数

型号 3549H-1AE-203A AMM20B5A1BLASL380 3549H-1AA-203A

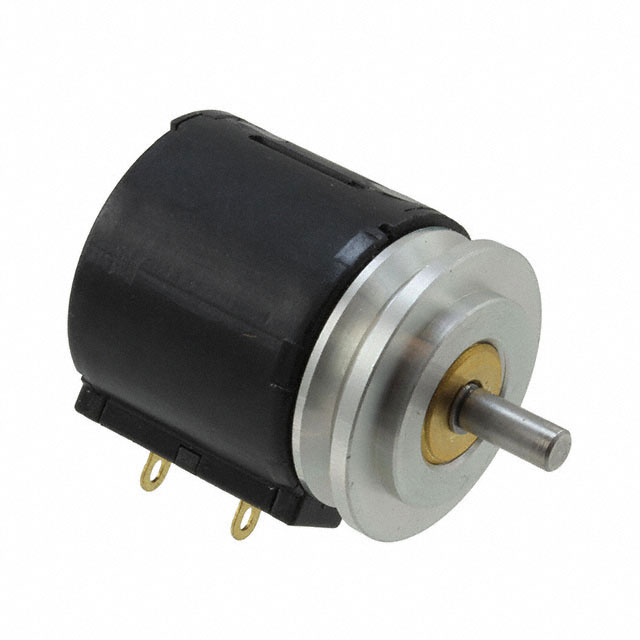

描述 Res Hybritron POT 20KΩ 10% 2W 10(Elec)/10(Mech)Turns 3.17mm (34.75 X 22.23 X 27.37mm) Solder Lug Servo Mount TrayAMM20B多圈磁性位置传感器 AMM20B Multiturn Magnetic Position SensorRes Hybritron POT 20KΩ 10% 2W 10(Elec)/10(Mech)Turns 6.35mm (40.43 X 22.48 X 27.5mm) Solder Lug Panel Mount Tray

数据手册 ---

制造商 Bourns J.W. Miller (伯恩斯) Bourns J.W. Miller (伯恩斯) Bourns J.W. Miller (伯恩斯)

分类 电位器电位器

安装方式 Solder Lug, Panel Through Hole Solder Lug, Panel

封装 Round - 0.885" Dia x 0.780" H (22.48mm x 19.81mm) - Round - 0.885" Dia x 0.780" H (22.48mm x 19.81mm)

引脚数 - 3 -

容差 ±10 % - ±10 %

额定功率 2 W - 2 W

电阻 20 kΩ - 20 kΩ

工作温度(Max) - 125 ℃ 125 ℃

工作温度(Min) - -40 ℃ -55 ℃

输出电压(Max) - 4950 mV -

电源电压 - 5 V -

封装 Round - 0.885" Dia x 0.780" H (22.48mm x 19.81mm) - Round - 0.885" Dia x 0.780" H (22.48mm x 19.81mm)

高度 - - 27.5 mm

温度系数 ±100 ppm/℃ - ±100 ppm/℃

工作温度 - -40℃ ~ 125℃ -

产品生命周期 Active Active Active

包装方式 Tray - Tray

RoHS标准 RoHS Compliant RoHS Compliant RoHS Compliant

含铅标准 Lead Free Lead Free Lead Free
