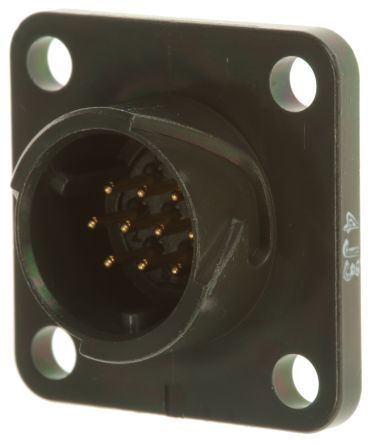

HR34B-12WRA-10P、HR34B-12WR-10PD(71)对比区别
型号 HR34B-12WRA-10P HR34B-12WR-10PD(71)
描述 Receptacle, wire solder### 推入式卡口锁定 - HR34BReceptacle, through holeFrom Hirose, this HR34B Series receptacle is a reliable panel-mounted socket designed for use with the corresponding HR34B mini water-proof connector. With an easy to use push-on bayonet locking system, the resulting connection is extremely secure and, when fully mated, rated at IP67, meaning that the connection it is well protected against dust and water penetration. Providing protection even against industrial grade oils, the Hirose HR34B miniature connection system is ideal for industrial applications.### 推入式卡口锁定 - HR34B
数据手册 --
制造商 Hirose Electric (广濑) Hirose Electric (广濑)
分类 圆形连接器圆形连接器
安装方式 Solder, Panel Through Hole
触点数 10 10
极性 Female Female
触点电镀 Gold Gold
额定电流 3 A 3 A
针脚数 10 10
工作温度(Max) 125 ℃ 125 ℃
工作温度(Min) -25 ℃ -25 ℃
额定电压 200VAC, 250VDC 200VAC, 250VDC
绝缘电阻 >1000MΩ @500VDC -
接触电阻 <30mΩ @1A -
额定电流(Max) 3 A -
触点材质 Copper Alloy Copper Alloy
工作温度 -25℃ ~ 125℃ -25℃ ~ 125℃
颜色 Black -
产品生命周期 Active Obsolete
包装方式 Tray Tray
RoHS标准 RoHS Compliant RoHS Compliant
含铅标准 Lead Free Lead Free
REACH SVHC标准 No SVHC No SVHC
REACH SVHC版本 2014/06/16 2014/06/16
宽度 23.4 mm -
高度 23.4 mm -
