TSS-108-04-G-D-RA、TSS-108-04-L-D-RA、AWHW16A-0202-T-R对比区别

高亮显示差异参数

型号 TSS-108-04-G-D-RA TSS-108-04-L-D-RA AWHW16A-0202-T-R

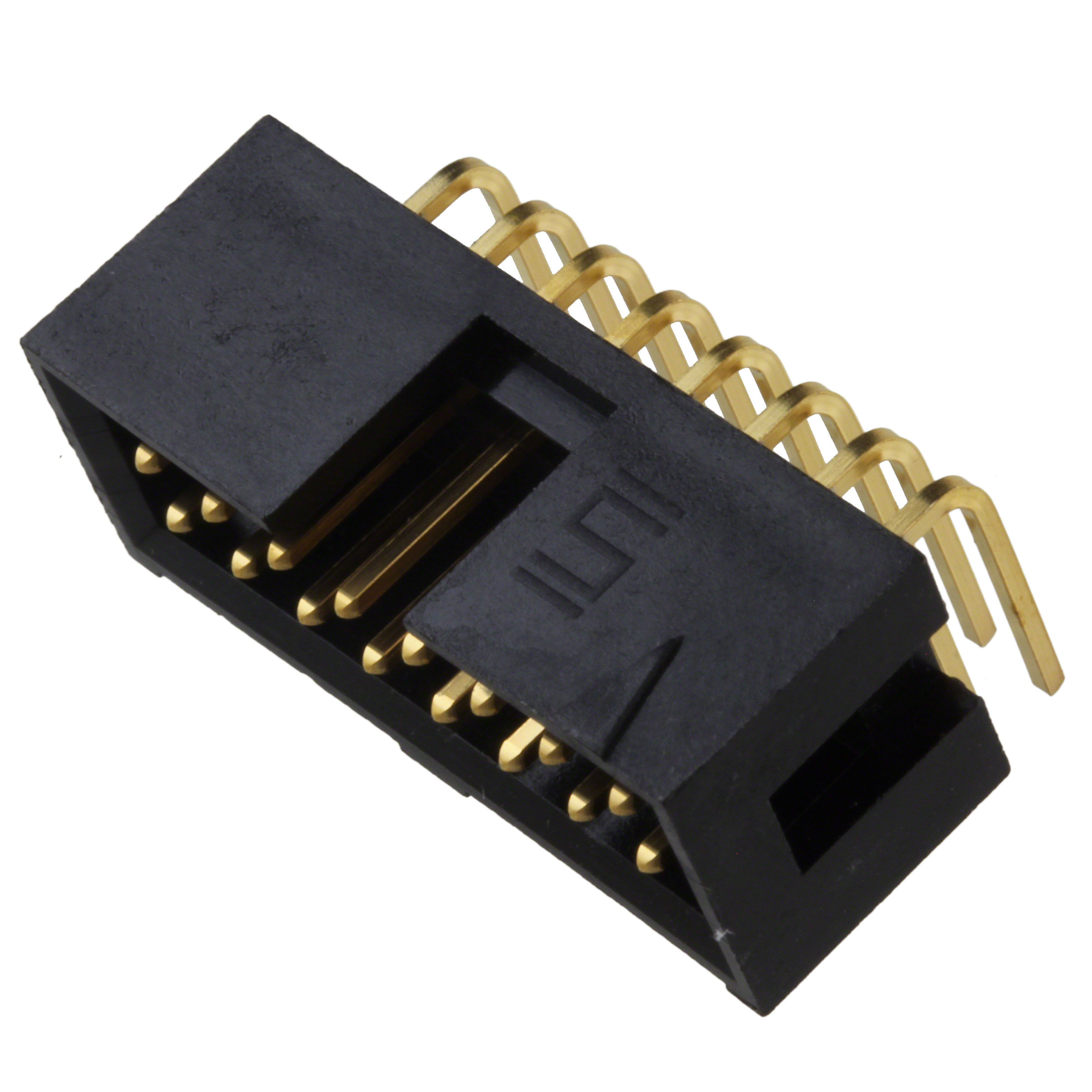

描述 SAMTEC TSS-108-04-G-D-RA Wire-To-Board Connector, 2.54mm, 16Contacts, Header, TSS Series, Through Hole, 2RowsSAMTEC TSS-108-04-L-D-RA Wire-To-Board Connector, 2.54mm, 16Contacts, Header, TSS Series, Through Hole, 2RowsConn Headr r/a Lo-Pro 16POS Gold

数据手册 ---

制造商 Samtec (申泰电子) Samtec (申泰电子) Assmann WSW (阿斯曼制造)

分类 板对板连接器线对板连接器插头插座

安装方式 Through Hole Through Hole Through Hole

引脚间距 - - 2.54 mm

触点数 16 16 16

极性 Male Male Male

触点电镀 Gold Gold Gold

额定电流 - 3 A 3 A

排数 2 2 2

针脚数 16 16 16

绝缘电阻 5000 MΩ - -

额定电流(Max) 3A/触头 - -

工作温度(Max) 125 ℃ - -

工作温度(Min) -55 ℃ - -

长度 - - 27.8 mm

宽度 - - 9.10 mm

高度 9.27 mm - 9.10 mm

引脚间距 - - 2.54 mm

外壳颜色 Black - Gray

触点材质 Phosphor Bronze Phosphor Bronze Brass

工作温度 -55℃ ~ 125℃ -55℃ ~ 125℃ -40℃ ~ 105℃

外壳材质 - - Plastic

颜色 Black - -

产品生命周期 Active Active Obsolete

包装方式 Tube - Tray

RoHS标准 RoHS Compliant RoHS Compliant RoHS Compliant

含铅标准 Lead Free Lead Free Lead Free

REACH SVHC标准 No SVHC No SVHC -

REACH SVHC版本 2015/06/15 2015/06/15 -
