97-3101A-14S-2P、97-3101A14S-2P、97-3101A-14S-2P(946)对比区别

高亮显示差异参数

型号 97-3101A-14S-2P 97-3101A14S-2P 97-3101A-14S-2P(946)

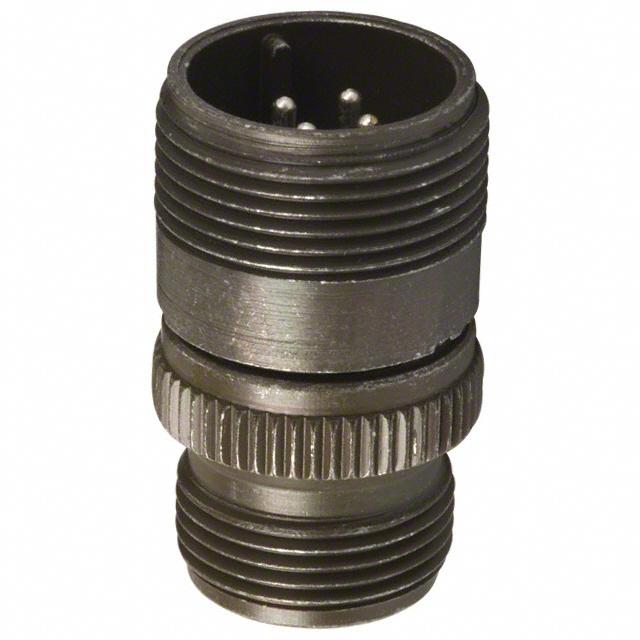

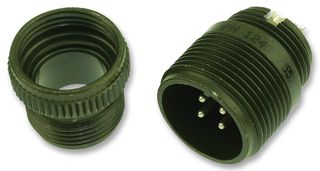

描述 AMPHENOL INDUSTRIAL  97-3101A-14S-2P.  圆形连接器, 尺寸14S, 4路, 电缆安装AMPHENOL INDUSTRIAL 97-3101A14S-2P Circular Connector, 97 Series, Cable Mount Receptacle, 4Contacts, Solder Pin, Threaded, 14S-2Conn Circular PIN 4POS Solder ST Cable Mount 4 Terminal 1Port

数据手册 ---

制造商 Amphenol (安费诺) Amphenol (安费诺) Amphenol (安费诺)

分类 圆形连接器MIL-C-5015圆形连接器圆形连接器

安装方式 Solder Solder Solder

封装 Metal - -

触点数 4 4 4

极性 Male Male Male

线规 16.0 AWG 16.0 AWG 16.0 AWG

触点电镀 Silver Silver Silver

额定电压(DC) 250 V 250 V -

额定电流 13 A 13.0 A 13 A

针脚数 4 4 4

工作温度(Max) 125 ℃ - 125 ℃

工作温度(Min) -55 ℃ - -55 ℃

额定电压 200VAC, 250VDC - 200VAC, 250VDC

额定电流(Max) - - 13 A

接触电阻(Max) - - 3.6 mΩ

长度 37.39 mm - -

封装 Metal - -

外壳颜色 Olive Drab - Black

颜色 Olive Olive Black

触点材质 Brass, Copper Alloy Brass, Copper Alloy Brass

绝缘材质 Plastic Plastic Plastic

工作温度 -55℃ ~ 125℃ - -55℃ ~ 125℃

产品生命周期 Active - Active

包装方式 Bulk Bulk Bulk

RoHS标准 Non-Compliant Non-Compliant RoHS Compliant

含铅标准 Contains Lead Contains Lead Lead Free

REACH SVHC标准 No SVHC No SVHC No SVHC

军工级 Yes Yes -
