MAX4562CEE-T、MAX4562CEE+、MAX4562EEE+对比区别

高亮显示差异参数

型号 MAX4562CEE-T MAX4562CEE+ MAX4562EEE+

描述 Selectable Soft-Switching Mode for "Clickless" Audio Operation * 30Ω max On-Resistance * Audio Performance * -85dB Off-Isolation at 20kHz * -85dB Crosstalk at 20kHz * -0.007% THD * Video Performance * -55dB Off-Isolation at 10MHz * -55dB Crosstalk at 10MHz * T-Switch Configurable for Improved Off-Isolation * Serial Interface * 2-Wire I²C-Compatible (MAX4562) * 3-Wire SPI/QSPI/MICROWIRE-Compatible (MAX4563) * Single-Supply Operation from +2.7V to +5.5Maxim Integrated Products### 模拟开关，Maxim IntegratedMAXIM INTEGRATED PRODUCTS  MAX4562EEE+  芯片, 视频开关

数据手册 ---

制造商 Maxim Integrated (美信) Maxim Integrated (美信) Maxim Integrated (美信)

分类 多工器模拟开关芯片多工器

安装方式 Surface Mount Surface Mount Surface Mount

引脚数 - 16 16

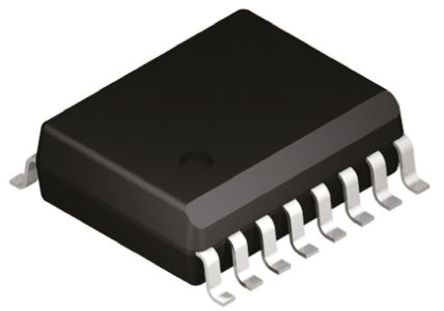

封装 QSOP-16 QSOP-16 QSOP-16

电源电压(DC) - - 2.70V (min)

通道数 - 4 4

针脚数 - - 16

耗散功率 667 mW - 667 mW

带宽 300 MHz 300 MHz 300 MHz

工作温度(Max) - 70 ℃ 85 ℃

工作温度(Min) - 0 ℃ -40 ℃

3dB带宽 - 300 MHz 300 MHz

耗散功率(Max) - 667 mW 667 mW

电源电压(Max) 5.5 V - 5.5 V

电源电压(Min) 2.7 V - 2.7 V

长度 - 4.98 mm 4.98 mm

宽度 - 3.99 mm 3.99 mm

高度 - 1.55 mm 1.55 mm

封装 QSOP-16 QSOP-16 QSOP-16

工作温度 - 0℃ ~ 70℃ -40℃ ~ 85℃

产品生命周期 Unknown Unknown Unknown

包装方式 Tape & Reel (TR) Tube Each

RoHS标准 Non-Compliant RoHS Compliant RoHS Compliant

含铅标准 Lead Free Lead Free Lead Free
