JC2A25-16S
数据手册.pdf
ITT Corporation
ITT电子
连接器与适配器

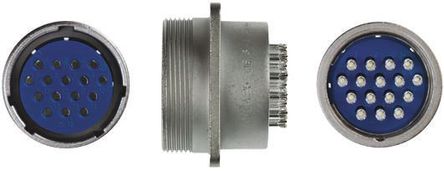

ITT CANNON JC2A25-16S 圆形连接器, JC系列, 插座, 16 触点, 母, 焊接, 面板安装
The JC series rugged lightweight general-purpose Circular Connector designed for use in multi-pin power connections. Small and compact with an aluminium alloy shell protected by grey nickel finish. It features five key polarization and closed-entry socket insulators for positive contact alignment and mating. The JC series is available in three shell style and 8 contact arrangement accommodating up to 24 size 20 contacts. Plug and receptacle shell styles will accommodate either pin or socket insulator. A threaded coupling design permits full engagement of the contacts even when the coupling nut is dis-engaged. This feature is useful for bench testing application.
- .
- Thermosetting resin insulator
- .
- Nickel-plated aluminium alloy shell, barrel, coupling nut and cable clamp
- .
- Proven design
- .
- Rugged, small, lightweight with metal shell protection
- .
- Smooth mating and stable function
