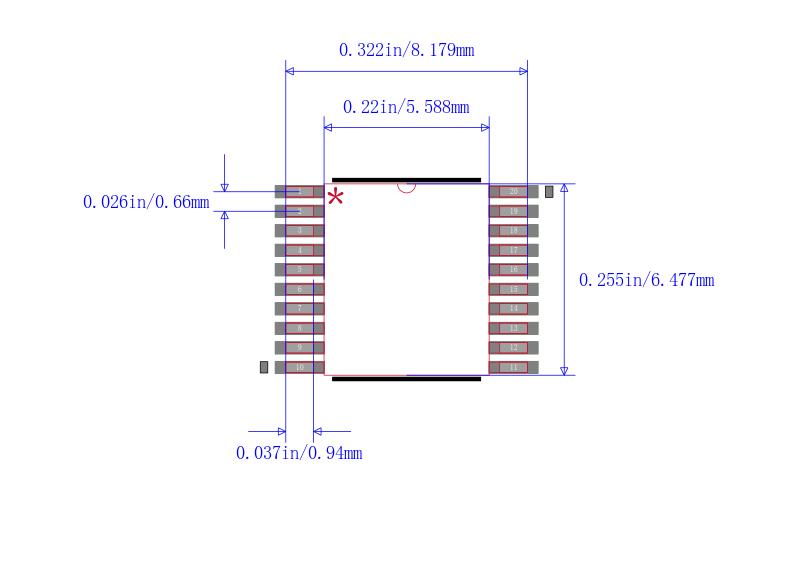

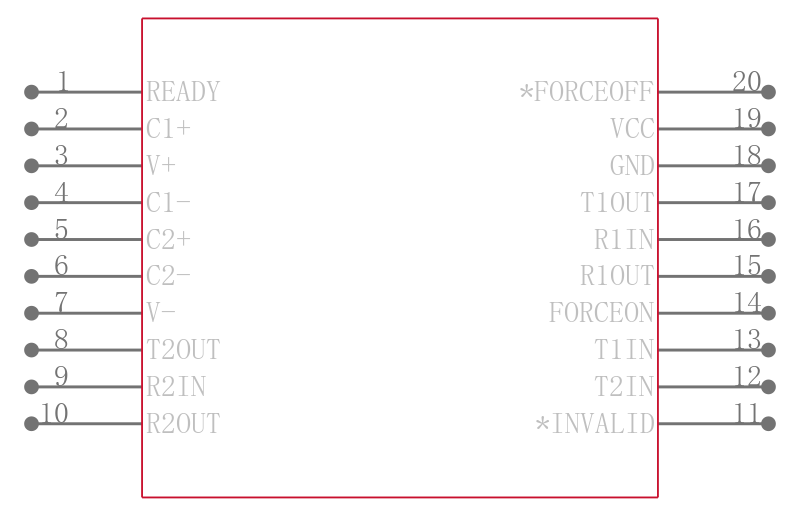

ICL3225CA-T

1微安， + 3V至+ 5.5V ，为1Mbps ， RS - 232收发器，具有增强的自动关闭电源 1 Microamp, +3V to +5.5V, 1Mbps, RS-232 Transceivers with Enhanced Automatic Powerdown

The ICL32XX devices are 3.0V to 5.5V powered RS-232 transmitters/receivers which meet ElA/TIA-232 and V.28/V.24 specifications, even at VCC = 3.0V. Targeted applications are PDAs, Palmtops, and notebook and laptop computers where the low operational, and even lower standby, power consumption is critical. Efficient on-chip charge pumps, coupled with manual and enhanced automatic powerdown functions, reduce the standby supply current to a 1µA trickle. Small footprint packaging, and the use of small, low value capacitors ensure board space savings as well. Data rates greater than 1Mbps are guaranteed at worst case load conditions. This family is fully compatible with 3.3V only systems, mixed 3.3V and 5.0V systems, and 5.0V only systems.

Features

• ±15kV ESD Protected Human Body Model

• Manual and Enhanced Automatic Powerdown Features

• Drop in Replacements for MAX3225, MAX3245

• Meets EIA/TIA-232 and V.28/V.24 Specifications at 3V

• Latch-Up Free

• On-Chip Voltage Converters Require Only Four External 0.1µF Capacitors

• Guaranteed Mouse Driveability ICL3245

• “Ready to Transmit” Indicator Output ICL3225

• Receiver Hysteresis For Improved Noise Immunity

• Guaranteed Minimum Data Rate . . . . . . . . . . . . . . 1Mbps

• Low Skew at Transmitter/Receiver Input Trip Points . . . 10ns

• Guaranteed Minimum Slew Rate . . . . . . . . . . . . . . 24V/µs

• Wide Power Supply Range. . . . . . . . Single +3V to +5.5V

• Low Supply Current in Powerdown State . . . . . . . . . . .1µA

• Pb-Free Plus Anneal Available RoHS Compliant

Applications

• Any System Requiring RS-232 Communication Ports

   - Battery Powered, Hand-Held, and Portable Equipment

   - Laptop Computers, Notebooks, Palmtops

   - Modems, Printers and other Peripherals

   - Digital Cameras

   - Cellular/Mobile Phones
