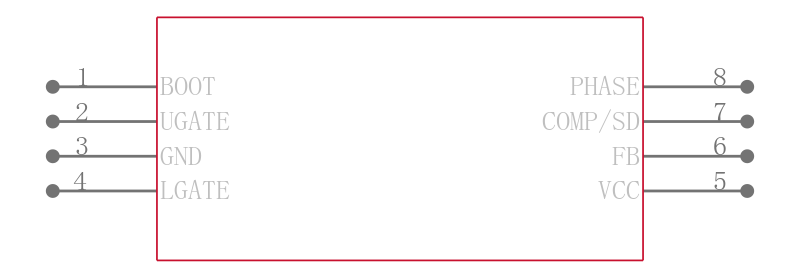

ISL6520BCBZ
数据手册.pdf单同步降压脉宽调制（ PWM ）控制器 Single Synchronous Buck Pulse-Width Modulation PWM Controller
The ISL6520B makes simple work out of implementing a complete control scheme for a DC-DC stepdown converter. Designed to drive N-channel MOSFETs in a synchronous buck topology, the ISL6520B integrates the control, output adjustment and monitoring functions into a single 8-Lead
package.
Features
• Operates from +5V Input
• 0.8V to VINOutput Range
\- 0.8V Internal Reference
\- ±1.5% Over Line Voltage and Temperature
• Drives N-Channel MOSFETs
• Simple Single-Loop Control Design
\- Voltage-Mode PWM Control
• Fast Transient Response
\- High-Bandwidth Error Amplifier
\- Full 0% to 100% Duty Cycle
• Small Converter Size
\- 300kHz Fixed Frequency Oscillator
\- Internal Soft Start
\- 8 Ld SOIC or 16Ld 4x4mm QFN
• QFN Package:
\- Compliant to JEDEC PUB95 MO-220 QFN - Quad Flat No Leads - Package Outline
\- Near Chip Scale Package footprint, which improves PCB efficiency and has a thinner profile
• Pb-Free Available RoHS Compliant
