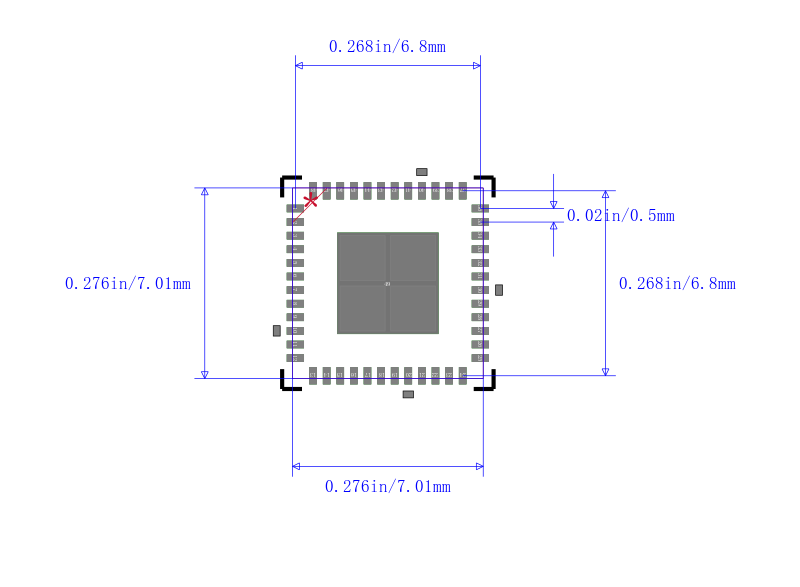

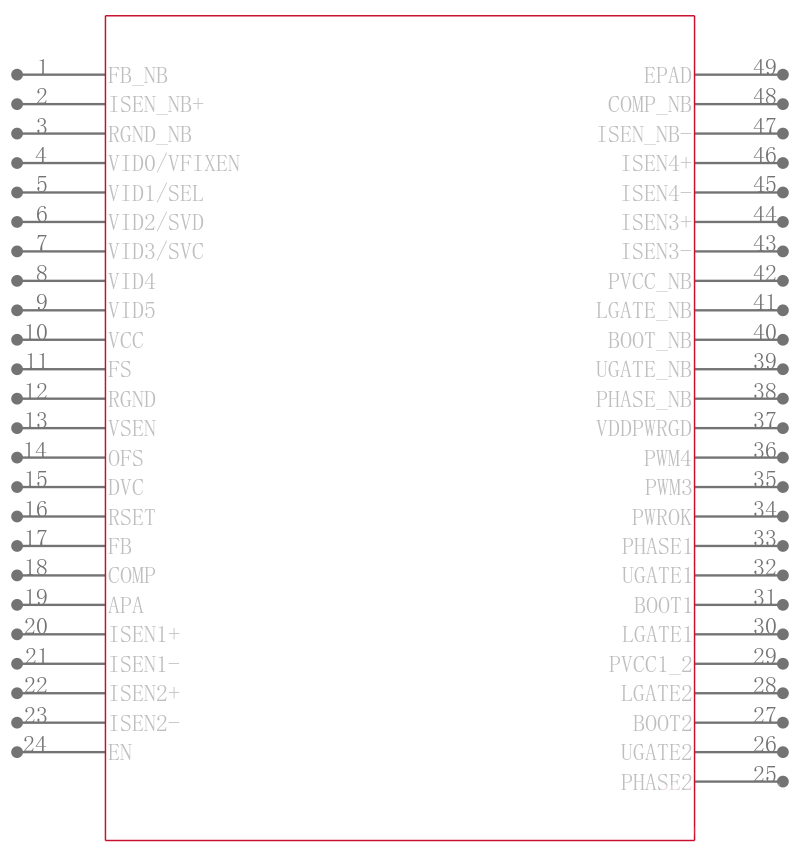

ISL6323BCRZ
数据手册.pdf单片双PWM混合控制器供电AMD SVI分割平面和PVI Uniplane处理器 Monolithic Dual PWM Hybrid Controller Powering AMD SVI Split-Plane and PVI Uniplane Processors
The ISL6323B dual PWM controller delivers high efficiency and tight regulation from two synchronous buck DC/DC converters. The ISL6323B supports hybrid power control of AMD processors which operate from either a 6-bit parallel VID interface PVI or a serial VID interface SVI. The dual output ISL6323B features a multi-phase controller to support uniplane VDD core voltage and a single phase controller to
power the Northbridge VDDNB in SVI mode. Only the multi-phase controller is active in PVI mode to support uniplane VDD only processors.
**_Features_**
**• Processor Core Voltage Via Integrated Multi-Phase ****Power Conversion**
• Configuration Flexibility
\- 2-Phase Operation with Internal Drivers
\- 3- or 4-Phase Operation with External PWM Drivers
• PSI_L Support with Phase Shedding for Improved Efficiency at Light Load
• Serial VID Interface Inputs
\- Two Wire, Clock and Data, Bus
\- Conforms to AMD SVI Specifications
• Parallel VID Interface Inputs
\- 6-bit VID input
\- 0.775V to 1.55V in 25mV Steps
\- 0.375V to 0.7625V in 12.5mV Steps
• Precision Core Voltage Regulation
\- Differential Remote Voltage Sensing
\- ±0.6% System Accuracy Over-Temperature
\- Adjustable Reference-Voltage Offset
• Optimal Processor Core Voltage Transient Response
\- Adaptive Phase Alignment APA
\- Active Pulse Positioning Modulation
• Fully Differential, Continuous DCR Current Sensing
\- Accurate Load Line Programming
\- Precision Channel Current Balancing
• Variable Gate Drive Bias: 5V to 12V
• Overcurrent Protection
• Multi-tiered Overvoltage Protection
• Selectable Switching Frequency up to 1MHz
• Simultaneous Digital Soft-Start of Both Outputs
**• Processor NorthBridge Voltage Via Single Phase ****Power Conversion**
• Precision Voltage Regulation
\- Differential Remote Voltage Sensing
\- ±0.6% System Accuracy Over Temperature
• Serial VID Interface Inputs
\- Two Wire, Clock and Data, Bus
\- Conforms to AMD SVI Specifications
• Overcurrent Protection
• Continuous DCR Current Sensing
• Variable Gate Drive Bias: 5V to 12V
• Simultaneous Digital Soft-Start of Both Outputs
• Selectable Switching Frequency up to 1MHz
• Pb-Free RoHS Compliant
