IMH21T110

IMH21T110

数据手册.pdf
ROHM Semiconductor 罗姆半导体 分立器件

ROHM### Digital Transistors, ROHMResistor-equipped bipolar transistors, also known as “Digital Transistors” or “Bias Resistor Transistors”, incorporating one or two integrated resistors. A single series input resistor, or a potential divider of two resistors, allows these devices to be directly driven from digital sources. Both single and dual transistor versions are available.

单电阻器双数字，ROHM


得捷:
TRANS PREBIAS DUAL NPN SMT6


立创商城:
IMH21T110


欧时:
ROHM IMH21T110 双 NPN 数字晶体管, 600 mA, Vce=20 V, 10 kΩ, 电阻比:无, 6引脚 SC-74封装


艾睿:
Trans Digital BJT NPN 20V 600mA 300mW 6-Pin SMT T/R


Chip1Stop:
Trans Digital BJT NPN 20V 600mA 6-Pin SMT T/R


Verical:
Trans Digital BJT NPN 20V 600mA 300mW 6-Pin SMT T/R


儒卓力:
**NPN/NPN DIGI-TRANS.10K/10K SMT6 **


Win Source:
TRANS PREBIAS DUAL NPN SMT6


DeviceMart:
TRANS DIGITAL NPN 20V 600MA SMT6


IMH21T110中文资料参数规格
技术参数

额定功率 0.3 W

极性 NPN

耗散功率 0.3 W

击穿电压集电极-发射极 20 V

集电极最大允许电流 600mA

最小电流放大倍数hFE 820 @50mA, 5V

额定功率Max 300 mW

工作温度Max 150 ℃

工作温度Min -55 ℃

增益带宽 150 MHz

耗散功率Max 300 mW

封装参数

安装方式 Surface Mount

引脚数 6

封装 SMT-6

外形尺寸

长度 3 mm

宽度 1.8 mm

高度 1.2 mm

封装 SMT-6

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

IMH21T110引脚图与封装图
IMH21T110引脚图

IMH21T110引脚图

IMH21T110封装图

IMH21T110封装图

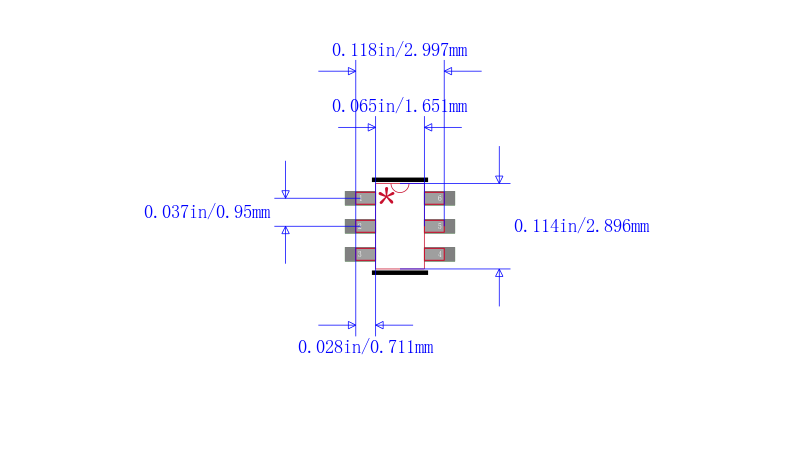

IMH21T110封装焊盘图

IMH21T110封装焊盘图

在线购买IMH21T110
型号 制造商 描述 购买
IMH21T110 ROHM Semiconductor 罗姆半导体 ROHM ### Digital Transistors, ROHM Resistor-equipped bipolar transistors, also known as “Digital Transistors” or “Bias Resistor Transistors”, incorporating one or two integrated resistors. A single series input resistor, or a potential divider of two resistors, allows these devices to be directly driven from digital sources. Both single and dual transistor versions are available. 搜索库存
替代型号IMH21T110
图片 型号/品牌/封装 代替类型 描述 替代型号对比

型号： IMH21T110

品牌： ROHM Semiconductor 罗姆半导体

封装： SC-74 NPN

当前型号

ROHM### Digital Transistors, ROHMResistor-equipped bipolar transistors, also known as “Digital Transistors” or “Bias Resistor Transistors”, incorporating one or two integrated resistors. A single series input resistor, or a potential divider of two resistors, allows these devices to be directly driven from digital sources. Both single and dual transistor versions are available.

当前型号

型号： IMH23T110

品牌： 罗姆半导体

封装： SMT NPN 0.3W

完全替代

ROHM### Digital Transistors, ROHMResistor-equipped bipolar transistors, also known as “Digital Transistors” or “Bias Resistor Transistors”, incorporating one or two integrated resistors. A single series input resistor, or a potential divider of two resistors, allows these devices to be directly driven from digital sources. Both single and dual transistor versions are available.

IMH21T110和IMH23T110的区别

型号： IMH24T110

品牌： 罗姆半导体

封装： SMT-6 NPN

类似代替

SMT NPN 20V 600mA

IMH21T110和IMH24T110的区别

型号： IMH3AT110

品牌： 罗姆半导体

封装： SOT-457 N-Channel 50V 100mA 0.3W

功能相似

NPN/NPN 50V 0.1A双偏置电阻晶体管

IMH21T110和IMH3AT110的区别
