FP3-150-R

FP3-150-R

数据手册.pdf
Cooper Bussmann 库柏 被动器件

Low Profile, High Current Inductors - FLAT-PAC™ 3 SeriesFLAT-PAC™ 3 Series low profile high current inductors with a maximum total operating temperature of 155°C. The FLAT-PAC™ 3 series inductors have a high resistance to aging by virtue of their construction utilising a high temperature powdered iron material with a non-organic binder. Applications for FLAT-PAC™3 series include: computers and portable power devices; Energy storage applications; DC-DC converters; Input - Output filter applications ### Cooper Bussmann 非标准 SMT 电感器（扼流圈）

Low Profile, High Current Inductors - FLAT-PAC™ 3 Series

FLAT-PAC™ 3 Series low profile high current inductors with a maximum total operating temperature of 155°C. The FLAT-PAC™ 3 series inductors have a high resistance to aging by virtue of their construction utilising a high temperature powdered iron material with a non-organic binder. Applications for FLAT-PAC™3 series include: computers and portable power devices; Energy storage applications; DC-DC converters; Input - Output filter applications

### 非标准 SMT 器（扼流圈）

FP3-150-R中文资料参数规格
技术参数

额定电流 2.22 A

容差 ±15 %

电感 15 µH

屏蔽 No

电感公差 ±15 %

测试频率 100 kHz

电阻DC） ≤127 mΩ

工作温度Max 155 ℃

工作温度Min -40 ℃

电阻DC Max 0.127 Ω

封装参数

安装方式 Surface Mount

引脚数 2

封装 FP-3

外形尺寸

长度 7.25 mm

宽度 6.70 mm

高度 3 mm

封装 FP-3

物理参数

工作温度 -40℃ ~ 155℃

其他

产品生命周期 Unknown

包装方式 Cut Tape CT

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/06/15

FP3-150-R引脚图与封装图

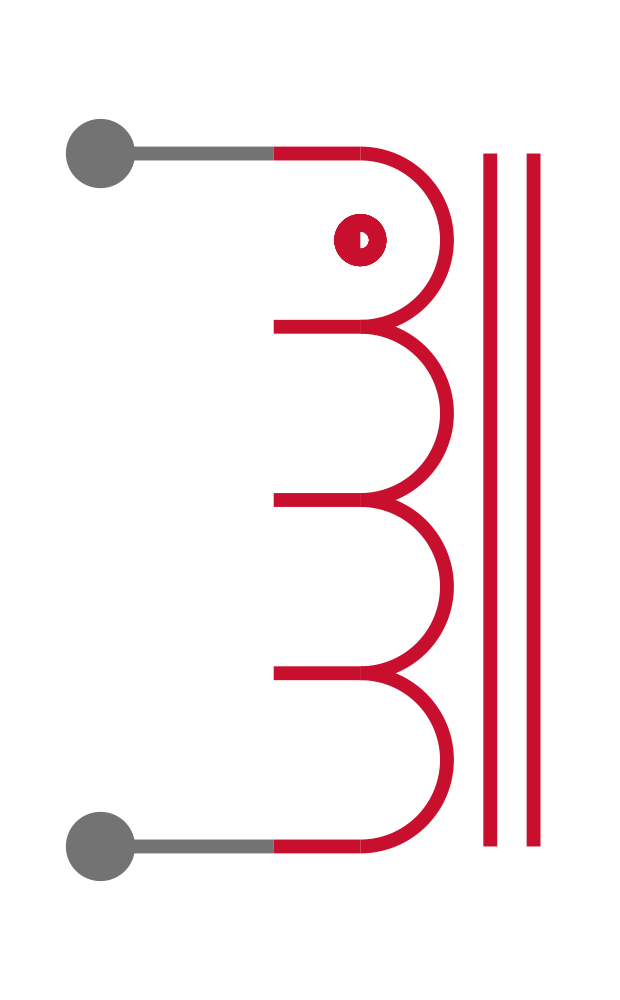

FP3-150-R引脚图

FP3-150-R引脚图

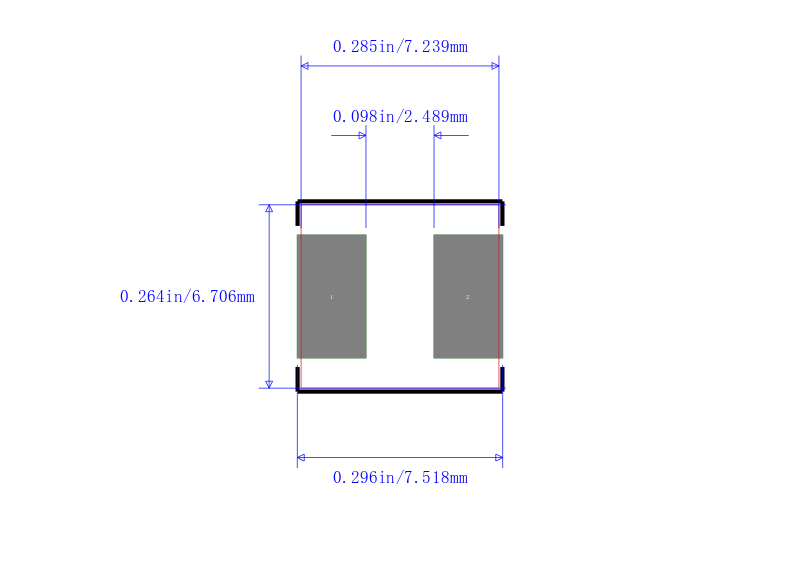

FP3-150-R封装图

FP3-150-R封装图

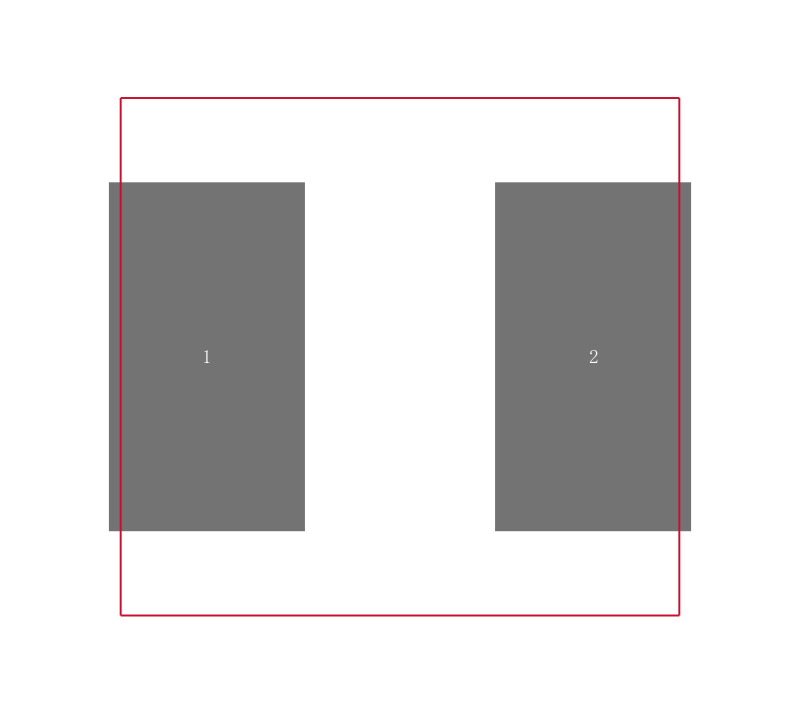

FP3-150-R封装焊盘图

FP3-150-R封装焊盘图

在线购买FP3-150-R
型号 制造商 描述 购买
FP3-150-R Cooper Bussmann 库柏 Low Profile, High Current Inductors - FLAT-PAC™ 3 Series FLAT-PAC™ 3 Series low profile high current inductors with a maximum total operating temperature of 155°C. The FLAT-PAC™ 3 series inductors have a high resistance to aging by virtue of their construction utilising a high temperature powdered iron material with a non-organic binder. Applications for FLAT-PAC™3 series include: computers and portable power devices; Energy storage applications; DC-DC converters; Input - Output filter applications ### Cooper Bussmann 非标准 SMT 电感器（扼流圈） 搜索库存
替代型号FP3-150-R
图片 型号/品牌/封装 代替类型 描述 替代型号对比

型号： FP3-150-R

品牌： Cooper Bussmann 库柏

封装： Non 15µH

当前型号

Low Profile, High Current Inductors - FLAT-PAC™ 3 SeriesFLAT-PAC™ 3 Series low profile high current inductors with a maximum total operating temperature of 155°C. The FLAT-PAC™ 3 series inductors have a high resistance to aging by virtue of their construction utilising a high temperature powdered iron material with a non-organic binder. Applications for FLAT-PAC™3 series include: computers and portable power devices; Energy storage applications; DC-DC converters; Input - Output filter applications ### Cooper Bussmann 非标准 SMT 电感器（扼流圈）

当前型号

型号： FP3-150

品牌： 伊顿巴斯曼

封装：

功能相似

14.9uH ±15% 2.22A

FP3-150-R和FP3-150的区别
