FLUKE-721-1605
数据手册.pdfFluke 721 精密压力校准器Fluke 721 精密压力校准器,带双隔离压力 传感器,设计用于气体流量校准(自定义传输)应用,使用户能够使用单一工具同时进行静态和差分压力测量。 可通过选择 16 PSI 1.1 bar 或 36 PSI 2.48 bar 低压力传感器和添加任何 7 个高压力范围:100、300、500、1000、1500、3000、5000 psi(6、9、20、24.5、69、103.4、200、345 bar)配置 Fluke 721。 用户可使用单独提供的 Pt-100 RTD 探针 Fluke-720RTD 796-1646 添加温度测量。两个隔离的不锈钢压力传感器,带 0.025% 精确度 Pt 100 RTD 输入,用于温度测量(单独提供探针) 测量 4 至 20 mA 信号 内部 24 V 回路电源可为接受的发射器提供电源 测量高达 30 V 直流电源,检查 24 V 回路电源 连接到外部 Fluke 700 系列压力模块可延长压力测量范围 背光图形显示器可同时显示多达 3 个输入 存储 5 个仪器设置,以供调用和使用 ### 标准EN50082-1:1992 和 EN55022:1994 B 级### 随附测试线、软箱、AA 电池 x4、手册、可追踪校准证书### 压力校准器
**Pressure calibration and temperature measurement for custody transfer applications**

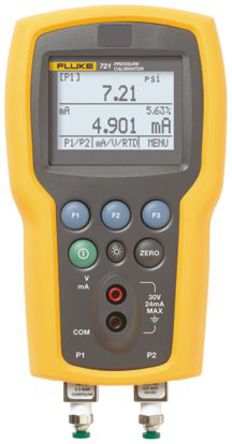

The 721 Precision Pressure Calibrator with dual isolated pressure sensors is the ideal tool for gas custody transfer applications allowing you to take simultaneous static and differential pressure measurements with a single tool.
The 721 can be configured by selecting either a 16 PSI 1.1 bar or 36 psi 2.48 bar low pressure sensor then add any of 7 high pressure ranges including 100, 300, 500, 1000, 1500, 3000 or 5000 psi 6.9, 20, 24.5, 69, 103.4, 200, 345 bar.
* Ideal for gas flow calibration custody transfer applications
* Two isolated, stainless steel, pressure sensors with 0.025% accuracy
* Pt100 RTD input for temperature measurement, probe optional
* Measures 4 to 20 mA signals
* Internal 24 V loop power supply can power a transmitter under test
* Measure up to 30 V dc, check 24 V loop power supplies
* Extend pressure measurement range with connection to external 700 series pressure modules 29 ranges
* Large backlit graphic display can display up to three inputs simultaneously
* Store five instrument setups for recall and use"
